Shapefile export demo

The goal of this notebook is to demonstrate ways to export model information to shapefiles. This example will cover: * basic exporting of information for a model, individual package, or dataset * custom exporting of combined data from different packages * general exporting and importing of geographic data from other sources

[1]:

import os

[2]:

import sys
from tempfile import TemporaryDirectory

import matplotlib as mpl
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

import flopy

print(sys.version)
print("numpy version: {}".format(np.__version__))
print("matplotlib version: {}".format(mpl.__version__))
print("flopy version: {}".format(flopy.__version__))

3.8.18 (default, Aug 28 2023, 08:27:22)
[GCC 11.4.0]
numpy version: 1.24.4
matplotlib version: 3.7.3
flopy version: 3.4.3

[3]:

# temporary directory
temp_dir = TemporaryDirectory()
outdir = os.path.join(temp_dir.name, "shapefile_export")

# load an existing model
model_ws = "../../examples/data/freyberg"
m = flopy.modflow.Modflow.load(
    "freyberg.nam",
    model_ws=model_ws,
    verbose=False,
    check=False,
    exe_name="mfnwt",
)

[4]:

m.get_package_list()

[4]:

['DIS', 'BAS6', 'LPF', 'WEL', 'RIV', 'RCH', 'OC', 'PCG']

set the model coordinate information

the coordinate information where the grid is located in a projected coordinate system (e.g. UTM)

[5]:

grid = m.modelgrid
grid.set_coord_info(xoff=273170, yoff=5088657, epsg=26916)

/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/utils/crs.py:119: PendingDeprecationWarning: the epsg argument will be deprecated and will be removed in version 3.4. Use crs instead.
  warnings.warn(

[6]:

grid.extent

[6]:

(273170.0, 278170.0, 5088657.0, 5098657.0)

Declarative export using attached .export() methods

Export the whole model to a single shapefile

[7]:

fname = "{}/model.shp".format(outdir)
m.export(fname)

/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for delc array, DIS package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for delr array, DIS package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for laycbd array, DIS package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for nstp array, DIS package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for perlen array, DIS package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for steady array, DIS package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for tsmult array, DIS package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for chani array, LPF package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for layavg array, LPF package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for laytyp array, LPF package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for layvka array, LPF package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for laywet array, LPF package
  warn(

[8]:

ax = plt.subplot(1, 1, 1, aspect="equal")
extents = grid.extent
pc = flopy.plot.plot_shapefile(fname, ax=ax, edgecolor="k", facecolor="none")
ax.set_xlim(extents[0], extents[1])
ax.set_ylim(extents[2], extents[3])
ax.set_title(fname)

[8]:

Text(0.5, 1.0, '/tmp/tmptjfsm5qe/shapefile_export/model.shp')
../_images/Notebooks_shapefile_export_example_10_1.png
[9]:

fname = "{}/wel.shp".format(outdir)
m.wel.export(fname)

Export a package to a shapefile

Export a FloPy list or array object

[10]:

m.lpf.hk

[10]:

<flopy.utils.util_array.Util3d at 0x7ff0c656a1c0>

[11]:

fname = "{}/hk.shp".format(outdir)
m.lpf.hk.export("{}/hk.shp".format(outdir))

[12]:

ax = plt.subplot(1, 1, 1, aspect="equal")
extents = grid.extent
a = m.lpf.hk.array.ravel()
pc = flopy.plot.plot_shapefile(fname, ax=ax, a=a)
ax.set_xlim(extents[0], extents[1])
ax.set_ylim(extents[2], extents[3])
ax.set_title(fname)

[12]:

Text(0.5, 1.0, '/tmp/tmptjfsm5qe/shapefile_export/hk.shp')
../_images/Notebooks_shapefile_export_example_16_1.png
[13]:

m.riv.stress_period_data

[13]:

<flopy.utils.util_list.MfList at 0x7ff0c656a6a0>

[14]:

m.riv.stress_period_data.export("{}/riv_spd.shp".format(outdir))

MfList.export() exports the whole grid by default, regardless of the locations of the boundary cells

sparse=True only exports the boundary cells in the MfList

[15]:

m.riv.stress_period_data.export("{}/riv_spd.shp".format(outdir), sparse=True)

wrote ../../../../home/runner/work/flopy/flopy/.docs/Notebooks

[16]:

m.wel.stress_period_data.export("{}/wel_spd.shp".format(outdir), sparse=True)

wrote ../../../../home/runner/work/flopy/flopy/.docs/Notebooks

Ad-hoc exporting using recarray2shp

  • The main idea is to create a recarray with all of the attribute information, and a list of geometry features (one feature per row in the recarray)

  • each geometry feature is an instance of the Point, LineString or Polygon classes in flopy.utils.geometry. The shapefile format requires all the features to be of the same type.

  • We will use pandas dataframes for these examples because they are easy to work with, and then convert them to recarrays prior to exporting.

[17]:

from flopy.export.shapefile_utils import recarray2shp

combining data from different packages

write a shapefile of RIV and WEL package cells

[18]:

wellspd = pd.DataFrame(m.wel.stress_period_data[0])
rivspd = pd.DataFrame(m.riv.stress_period_data[0])
spd = pd.concat([wellspd, rivspd])
spd.head()

[18]:
k i j flux iface stage cond rbot
0 0 8 15 -0.00820 0.0 NaN NaN NaN
1 0 10 12 -0.00410 0.0 NaN NaN NaN
2 0 19 13 -0.00390 0.0 NaN NaN NaN
3 0 25 9 -0.00083 0.0 NaN NaN NaN
4 0 28 5 -0.00072 0.0 NaN NaN NaN
[19]:

from flopy.utils.geometry import Polygon

vertices = []
for row, col in zip(spd.i, spd.j):
    vertices.append(grid.get_cell_vertices(row, col))
polygons = [Polygon(vrt) for vrt in vertices]
polygons

[19]:

[<flopy.utils.geometry.Polygon at 0x7ff0c54bde80>,
 <flopy.utils.geometry.Polygon at 0x7ff0c54ad730>,
 <flopy.utils.geometry.Polygon at 0x7ff0c54ade50>,
 <flopy.utils.geometry.Polygon at 0x7ff0c54ad160>,
 <flopy.utils.geometry.Polygon at 0x7ff0c54ad940>,
 <flopy.utils.geometry.Polygon at 0x7ff0c54ad3d0>,
 <flopy.utils.geometry.Polygon at 0x7ff0c54adbb0>,
 <flopy.utils.geometry.Polygon at 0x7ff0c54adee0>,
 <flopy.utils.geometry.Polygon at 0x7ff0c54adc40>,
 <flopy.utils.geometry.Polygon at 0x7ff0c54ad6a0>,
 <flopy.utils.geometry.Polygon at 0x7ff0c54ada00>,
 <flopy.utils.geometry.Polygon at 0x7ff0c54ad070>,
 <flopy.utils.geometry.Polygon at 0x7ff0c54ada90>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299070>,
 <flopy.utils.geometry.Polygon at 0x7ff0c32990d0>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299220>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299340>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299310>,
 <flopy.utils.geometry.Polygon at 0x7ff0c32994f0>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299580>,
 <flopy.utils.geometry.Polygon at 0x7ff0c32996a0>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299730>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299700>,
 <flopy.utils.geometry.Polygon at 0x7ff0c32998e0>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299820>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299a00>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299a60>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299b20>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299b80>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299c40>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299ca0>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299d60>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299df0>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299dc0>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299f10>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299fa0>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299160>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299040>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299670>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299790>,
 <flopy.utils.geometry.Polygon at 0x7ff0c3299940>,
 <flopy.utils.geometry.Polygon at 0x7ff0c32b72b0>,
 <flopy.utils.geometry.Polygon at 0x7ff0c32b7340>,
 <flopy.utils.geometry.Polygon at 0x7ff0c32b7430>,
 <flopy.utils.geometry.Polygon at 0x7ff0c32b74c0>,
 <flopy.utils.geometry.Polygon at 0x7ff0c32b7550>]

[20]:

fname = "{}/bcs.shp".format(outdir)
recarray2shp(spd.to_records(), geoms=polygons, shpname=fname, epsg=grid.epsg)

wrote ../../../../home/runner/work/flopy/flopy/.docs/Notebooks

/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/utils/crs.py:119: PendingDeprecationWarning: the epsg argument will be deprecated and will be removed in version 3.4. Use crs instead.
  warnings.warn(

[21]:

ax = plt.subplot(1, 1, 1, aspect="equal")
extents = grid.extent
pc = flopy.plot.plot_shapefile(fname, ax=ax)
ax.set_xlim(extents[0], extents[1])
ax.set_ylim(extents[2], extents[3])
ax.set_title(fname)

[21]:

Text(0.5, 1.0, '/tmp/tmptjfsm5qe/shapefile_export/bcs.shp')

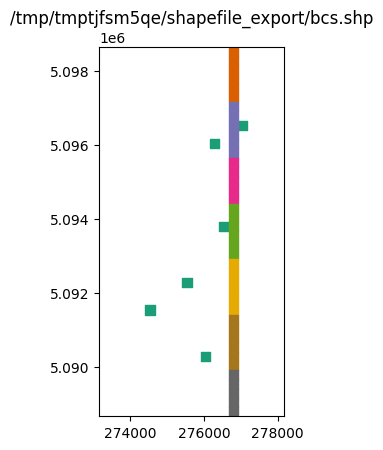

../_images/Notebooks_shapefile_export_example_30_1.png

exporting other data

Suppose we have some well data with actual locations that we want to export to a shapefile

[22]:

welldata = pd.DataFrame(
    {
        "wellID": np.arange(0, 10),
        "q": np.random.randn(10) * 100 - 1000,
        "x_utm": np.random.rand(10) * 5000 + grid.xoffset,
        "y_utm": grid.yoffset + np.random.rand(10) * 10000,
    }
)
welldata.head()

[22]:
wellID q x_utm y_utm
0 0 -1092.359884 276660.473089 5.095095e+06
1 1 -974.519847 276306.978258 5.093062e+06
2 2 -889.823255 277969.021802 5.096678e+06
3 3 -1062.366654 277663.656335 5.090236e+06
4 4 -968.146430 277554.297277 5.090216e+06
[23]:

from flopy.utils.geometry import Point

geoms = [Point(x, y) for x, y in zip(welldata.x_utm, welldata.y_utm)]

fname = "{}/wel_data.shp".format(outdir)
recarray2shp(welldata.to_records(), geoms=geoms, shpname=fname, epsg=grid.epsg)

wrote ../../../../home/runner/work/flopy/flopy/.docs/Notebooks

/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/utils/crs.py:119: PendingDeprecationWarning: the epsg argument will be deprecated and will be removed in version 3.4. Use crs instead.
  warnings.warn(

[24]:

ax = plt.subplot(1, 1, 1, aspect="equal")
extents = grid.extent
pc = flopy.plot.plot_shapefile(fname, ax=ax, radius=100)
ax.set_xlim(extents[0], extents[1])
ax.set_ylim(extents[2], extents[3])
ax.set_title(fname)

[24]:

Text(0.5, 1.0, '/tmp/tmptjfsm5qe/shapefile_export/wel_data.shp')

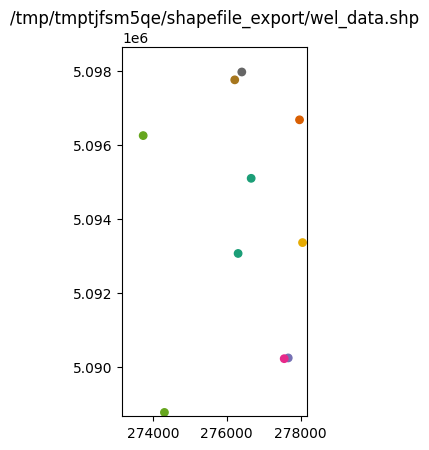

../_images/Notebooks_shapefile_export_example_35_1.png

Adding attribute data to an existing shapefile

Suppose we have a GIS coverage representing the river in the riv package

[25]:

from flopy.utils.geometry import LineString

### make up a linestring shapefile of the river reaches
i, j = m.riv.stress_period_data[0].i, m.riv.stress_period_data[0].j
x0 = grid.xyzcellcenters[0][i[0], j[0]]
x1 = grid.xyzcellcenters[0][i[-1], j[-1]]
y0 = grid.xyzcellcenters[1][i[0], j[0]]
y1 = grid.xyzcellcenters[1][i[-1], j[-1]]
x = np.linspace(x0, x1, m.nrow + 1)
y = np.linspace(y0, y1, m.nrow + 1)
l0 = zip(list(zip(x[:-1], y[:-1])), list(zip(x[1:], y[1:])))
lines = [LineString(l) for l in l0]

rivdata = pd.DataFrame(m.riv.stress_period_data[0])
rivdata["reach"] = np.arange(len(lines))
lines_shapefile = "{}/riv_reaches.shp".format(outdir)
recarray2shp(
    rivdata.to_records(index=False),
    geoms=lines,
    shpname=lines_shapefile,
    epsg=grid.epsg,
)

wrote ../../../../home/runner/work/flopy/flopy/.docs/Notebooks

/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/utils/crs.py:119: PendingDeprecationWarning: the epsg argument will be deprecated and will be removed in version 3.4. Use crs instead.
  warnings.warn(

[26]:

ax = plt.subplot(1, 1, 1, aspect="equal")
extents = grid.extent
pc = flopy.plot.plot_shapefile(lines_shapefile, ax=ax, radius=25)
ax.set_xlim(extents[0], extents[1])
ax.set_ylim(extents[2], extents[3])
ax.set_title(lines_shapefile)

[26]:

Text(0.5, 1.0, '/tmp/tmptjfsm5qe/shapefile_export/riv_reaches.shp')
../_images/Notebooks_shapefile_export_example_38_1.png

shp2recarray reads a shapefile into a numpy record array, which can easily be converted to a DataFrame

[27]:

from flopy.export.shapefile_utils import shp2recarray

[28]:

linesdata = shp2recarray(lines_shapefile)
linesdata = pd.DataFrame(linesdata)
linesdata.head()

[28]:
k i j stage cond rbot iface reach geometry
0 0 0 14 20.100000 0.05 20.00 0.0 0 <flopy.utils.geometry.LineString object at 0x7...
1 0 1 14 19.870001 0.05 19.75 0.0 1 <flopy.utils.geometry.LineString object at 0x7...
2 0 2 14 19.650000 0.05 19.50 0.0 2 <flopy.utils.geometry.LineString object at 0x7...
3 0 3 14 19.420000 0.05 19.25 0.0 3 <flopy.utils.geometry.LineString object at 0x7...
4 0 4 14 19.190001 0.05 19.00 0.0 4 <flopy.utils.geometry.LineString object at 0x7...
[29]:

# make up some fluxes between the river and aquifer at each reach
q = np.random.randn(len(linesdata)) + 1
q

[29]:

array([-0.18403005,  2.35045997, -0.21018577,  2.56692767,  2.3528112 ,
        1.05254341,  2.98830938,  1.34309542,  0.99476571,  1.11428521,
        0.94711756,  1.24274964,  0.98880093, -1.35575662, -0.08662407,
        1.58616024, -0.03223463,  1.41355697, -0.52118678,  1.81407137,
        2.24146616,  1.20358632,  0.60193288,  1.76019454, -0.8627548 ,
        0.18114315, -0.49923485,  0.15026523, -0.19594543,  0.87682404,
       -0.33079539, -0.31925346,  1.1363268 , -0.23418252,  1.03831157,
        2.35007046,  0.90669645,  1.42527292, -0.14586778,  1.52432627])

[30]:

linesdata["qreach"] = q
linesdata["qstream"] = np.cumsum(q)

[31]:

recarray2shp(
    linesdata.drop("geometry", axis=1).to_records(),
    geoms=linesdata.geometry.values,
    shpname=lines_shapefile,
    epsg=grid.epsg,
)

wrote ../../../../home/runner/work/flopy/flopy/.docs/Notebooks

/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/utils/crs.py:119: PendingDeprecationWarning: the epsg argument will be deprecated and will be removed in version 3.4. Use crs instead.
  warnings.warn(

[32]:

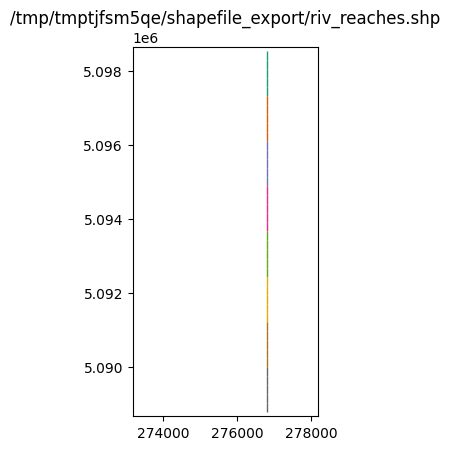

ax = plt.subplot(1, 1, 1, aspect="equal")
extents = grid.extent
pc = flopy.plot.plot_shapefile(lines_shapefile, ax=ax, radius=25)
ax.set_xlim(extents[0], extents[1])
ax.set_ylim(extents[2], extents[3])
ax.set_title(lines_shapefile)

[32]:

Text(0.5, 1.0, '/tmp/tmptjfsm5qe/shapefile_export/riv_reaches.shp')
../_images/Notebooks_shapefile_export_example_47_1.png

Overriding the model’s modelgrid with a user supplied modelgrid

In some cases it may be necessary to override the model’s modelgrid instance with a seperate modelgrid. An example of this is if the model discretization is in feet and the user would like it projected in meters. Exporting can be accomplished by supplying a modelgrid as a kwarg in any of the export() methods within flopy. Below is an example:

[33]:

mg0 = m.modelgrid

# build a new modelgrid instance with discretization in meters
modelgrid = flopy.discretization.StructuredGrid(
    delc=mg0.delc * 0.3048,
    delr=mg0.delr * 0.3048,
    top=mg0.top,
    botm=mg0.botm,
    idomain=mg0.idomain,
    xoff=mg0.xoffset * 0.3048,
    yoff=mg0.yoffset * 0.3048,
)

# exporting an entire model
m.export("{}/freyberg.shp".format(outdir), modelgrid=modelgrid)

No CRS information for writing a .prj file.
Supply an valid coordinate system reference to the attached modelgrid object or .export() method.
No CRS information for writing a .prj file.
Supply an valid coordinate system reference to the attached modelgrid object or .export() method.

/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for delc array, DIS package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for delr array, DIS package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for laycbd array, DIS package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for nstp array, DIS package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for perlen array, DIS package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for steady array, DIS package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for tsmult array, DIS package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for chani array, LPF package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for layavg array, LPF package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for laytyp array, LPF package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for layvka array, LPF package
  warn(
/opt/hostedtoolcache/Python/3.8.18/x64/lib/python3.8/site-packages/flopy/export/shapefile_utils.py:307: UserWarning: Failed to get data for laywet array, LPF package
  warn(

And for a specific parameter the method is the same

[34]:

fname = "{}/hk.shp".format(outdir)
m.lpf.hk.export(fname, modelgrid=modelgrid)

No CRS information for writing a .prj file.
Supply an valid coordinate system reference to the attached modelgrid object or .export() method.

[35]:

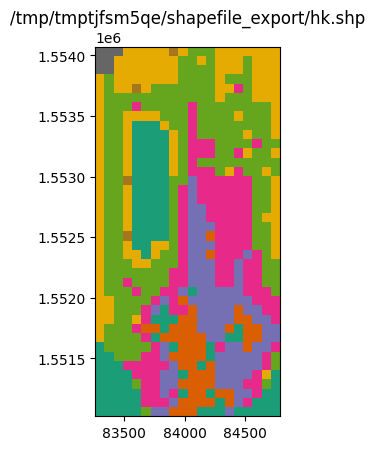

ax = plt.subplot(1, 1, 1, aspect="equal")
extents = modelgrid.extent
a = m.lpf.hk.array.ravel()
pc = flopy.plot.plot_shapefile(fname, ax=ax, a=a)
ax.set_xlim(extents[0], extents[1])
ax.set_ylim(extents[2], extents[3])
ax.set_title(fname)

[35]:

Text(0.5, 1.0, '/tmp/tmptjfsm5qe/shapefile_export/hk.shp')
../_images/Notebooks_shapefile_export_example_52_1.png
[36]:

try:
    # ignore PermissionError on Windows
    temp_dir.cleanup()
except:
    pass
