This page was generated from groundwater_paper_uspb_example.py. It's also available as a notebook.

Capture fraction example

From: Bakker, Mark, Post, Vincent, Langevin, C. D., Hughes, J. D., White, J. T., Starn, J. J. and Fienen, M. N., 2016, Scripting MODFLOW Model Development Using Python and FloPy: Groundwater, v. 54, p. 733-739, https://doi.org/10.1111/gwat.12413.

[1]:

import os
import sys
from pathlib import Path
from pprint import pformat

import git
import matplotlib as mpl
import matplotlib.pyplot as plt
import numpy as np
import pooch
import scipy.ndimage

import flopy

print(sys.version)
print(f"numpy version: {np.__version__}")
print(f"matplotlib version: {mpl.__version__}")
print(f"flopy version: {flopy.__version__}")

3.12.10 | packaged by conda-forge | (main, Apr 10 2025, 22:21:13) [GCC 13.3.0]
numpy version: 2.2.5
matplotlib version: 3.10.3
flopy version: 3.9.3

[2]:

ws = os.path.join("temp")
if not os.path.exists(ws):
    os.makedirs(ws)

Check if we are in the repository and define the data path.

[3]:

try:
    root = Path(git.Repo(".", search_parent_directories=True).working_dir)
except:
    root = None

[4]:

data_path = root / ".docs" / "groundwater_paper" if root else Path.cwd()

[5]:

fname = "USPB_capture_fraction_04_01.dat"
pooch.retrieve(
    url=f"https://github.com/modflowpy/flopy/raw/develop/.docs/groundwater_paper/uspb/results/{fname}",
    fname=fname,
    path=data_path / "uspb" / "results",
    known_hash=None,
)
fn = data_path / "uspb" / "results" / fname
cf = np.loadtxt(fn)
print(cf.shape)

(110, 80)

[6]:

cf2 = scipy.ndimage.zoom(cf, 4, order=0)
print(cf2.shape)

(440, 320)

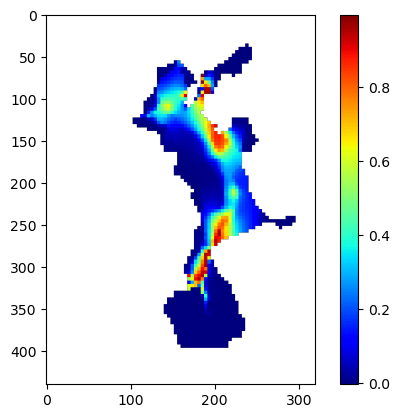

[7]:

c = plt.imshow(cf2, cmap="jet")
plt.colorbar(c)

[7]:

<matplotlib.colorbar.Colorbar at 0x7f490e3d9430>

../_images/Notebooks_groundwater_paper_uspb_example_8_1.png

[8]:

wsl = data_path / "uspb" / "flopy"
ml = flopy.modflow.Modflow.load("DG.nam", model_ws=wsl, verbose=False)

[9]:

nlay, nrow, ncol = ml.nlay, ml.dis.nrow, ml.dis.ncol
xmax, ymax = ncol * 250.0, nrow * 250.0

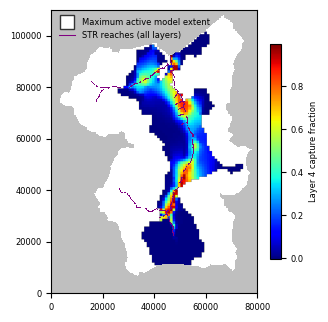

[10]:

plt.rcParams.update({"font.size": 6})
fig = plt.figure(figsize=(3.25, 4.47))
ax1 = plt.gca()
ax1.set_aspect("equal")
mm1 = flopy.plot.PlotMapView(model=ml, layer=4)
plt.xlim(0, xmax)
plt.ylim(0, ymax)
mm1.plot_inactive(color_noflow="0.75")
c = plt.imshow(cf2, cmap="jet", extent=[0, ncol * 250.0, 0, nrow * 250.0])
cb = plt.colorbar(c, shrink=0.5)
cb.ax.set_ylabel("Layer 4 capture fraction")
mm1.plot_bc(ftype="STR", plotAll=True)
plt.plot(
    [-10000],
    [-10000],
    marker="s",
    ms=10,
    lw=0.0,
    mec="0.2",
    mfc="white",
    label="Maximum active model extent",
)
plt.plot(
    [-10000, 0], [-10000, 0], color="purple", lw=0.75, label="STR reaches (all layers)"
)
leg = plt.legend(loc="upper left", numpoints=1, prop={"size": 6})
leg.draw_frame(False)
plt.xticks([0, 20000, 40000, 60000, 80000])
plt.tight_layout()
plt.savefig(os.path.join(ws, "capture_fraction_010y.png"), dpi=300)

../_images/Notebooks_groundwater_paper_uspb_example_11_0.png

Rerun the model after changing workspace and writing input files

[11]:

ml.change_model_ws(ws)
ml.exe_name = "mf2005dbl"
ml.write_input()
success, buff = ml.run_model(silent=True)
assert success, pformat(buff)

[12]:

hedObj = flopy.utils.HeadFile(os.path.join(ws, "DG.hds"), precision="double")
h = hedObj.get_data(kstpkper=(0, 0))
cbcObj = flopy.utils.CellBudgetFile(os.path.join(ws, "DG.cbc"), precision="double")

frf = cbcObj.get_data(kstpkper=(0, 0), text="FLOW RIGHT FACE")[0]
fff = cbcObj.get_data(kstpkper=(0, 0), text="FLOW FRONT FACE")[0]
qx, qy, qz = flopy.utils.postprocessing.get_specific_discharge((frf, fff, None), ml)

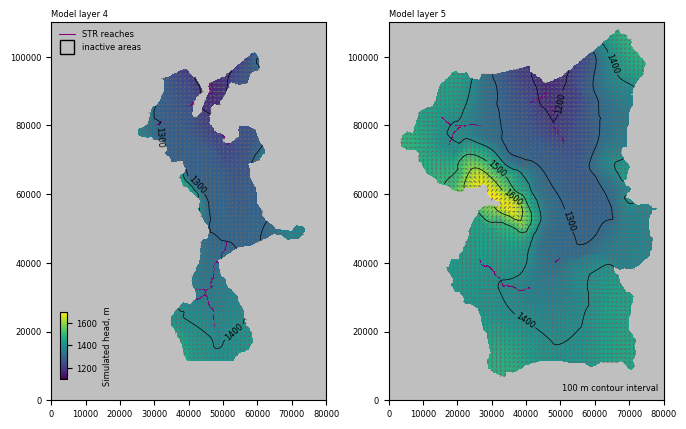

[13]:

cnt = np.arange(1200, 1700, 100)
f, (ax1, ax2) = plt.subplots(1, 2, figsize=(6.75, 4.47), constrained_layout=True)
ax1.set_xlim(0, xmax)
ax1.set_ylim(0, ymax)
ax2.set_xlim(0, xmax)
ax2.set_ylim(0, ymax)
ax1.set_aspect("equal")
ax2.set_aspect("equal")

mm1 = flopy.plot.PlotMapView(model=ml, ax=ax1, layer=3)
h1 = mm1.plot_array(h, masked_values=[-888, -999], vmin=1100, vmax=1700)
mm1.plot_inactive(color_noflow="0.75")
mm1.plot_bc(ftype="STR")
q1 = mm1.plot_vector(
    qx,
    qy,
    istep=5,
    jstep=5,
    normalize=True,
    color="0.4",
    scale=70,
    headwidth=3,
    headlength=3,
    headaxislength=3,
)
c1 = mm1.contour_array(
    h, masked_values=[-888, -999], colors="black", levels=cnt, linewidths=0.5
)
ax1.clabel(c1, fmt="%.0f", inline_spacing=0.5)

mm2 = flopy.plot.PlotMapView(model=ml, ax=ax2, layer=4)
h2 = mm2.plot_array(h, masked_values=[-888, -999], vmin=1100, vmax=1700)
mm2.plot_inactive(color_noflow="0.75")
mm2.plot_bc(ftype="STR")
q2 = mm2.plot_vector(
    qx,
    qy,
    istep=5,
    jstep=5,
    normalize=True,
    color="0.4",
    scale=70,
    headwidth=3,
    headlength=3,
    headaxislength=3,
)
c2 = mm2.contour_array(
    h, masked_values=[-888, -999], colors="black", levels=cnt, linewidths=0.5
)
ax2.clabel(c2, fmt="%.0f", inline_spacing=0.5)

ax3 = f.add_axes([0.08, 0.125, 0.01, 0.15])
cb = plt.colorbar(h2, cax=ax3)
cb.ax.set_ylabel("Simulated head, m")

ax1.plot([-10000, 0], [-10000, 0], color="purple", lw=0.75, label="STR reaches")
ax1.plot(
    [-10000],
    [-10000],
    marker="s",
    ms=10,
    lw=0.0,
    mec="black",
    mfc="None",
    label="inactive areas",
)
leg = ax1.legend(loc="upper left", numpoints=1, prop={"size": 6})
leg.draw_frame(False)

ax1.text(0.0, 1.01, "Model layer 4", ha="left", va="bottom", transform=ax1.transAxes)
ax2.text(
    0.98,
    0.02,
    "100 m contour interval",
    ha="right",
    va="bottom",
    transform=ax2.transAxes,
)
ax2.text(0.0, 1.01, "Model layer 5", ha="left", va="bottom", transform=ax2.transAxes)

plt.savefig(os.path.join(ws, "uspb_heads.png"), dpi=300)

../_images/Notebooks_groundwater_paper_uspb_example_15_0.png

[14]:

fname = "USPB_capture_fraction_04_10.dat"
pooch.retrieve(
    url=f"https://github.com/modflowpy/flopy/raw/develop/.docs/groundwater_paper/uspb/results/{fname}",
    fname=fname,
    path=data_path / "uspb" / "results",
    known_hash=None,
)
fn = data_path / "uspb" / "results" / fname
cf = np.loadtxt(fn)
cf2 = scipy.ndimage.zoom(cf, 4, order=0)

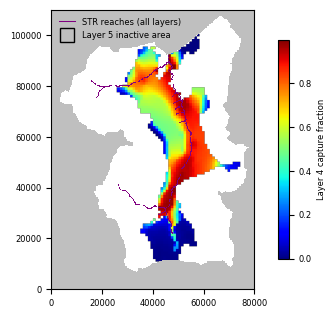

[15]:

fig = plt.figure(figsize=(3.25, 4.47), constrained_layout=True)
ax1 = plt.gca()
ax1.set_aspect("equal")
mm1 = flopy.plot.PlotMapView(model=ml, layer=4)
plt.xlim(0, xmax)
plt.ylim(0, ymax)
mm1.plot_inactive(color_noflow="0.75")
c = plt.imshow(cf2, cmap="jet", extent=[0, ncol * 250.0, 0, nrow * 250.0])
cb = plt.colorbar(c, shrink=0.5)
cb.ax.set_ylabel("Layer 4 capture fraction")
mm1.plot_bc(ftype="STR", plotAll=True)
plt.plot(
    [-10000, 0],
    [-10000, 0],
    color="purple",
    lw=0.75,
    label="STR reaches (all layers)",
)
plt.plot(
    [-10000],
    [-10000],
    marker="s",
    ms=10,
    lw=0.0,
    mec="black",
    mfc="None",
    label="Layer 5 inactive area",
)
leg = plt.legend(loc="upper left", numpoints=1, prop={"size": 6})
leg.draw_frame(False)
plt.xticks([0, 20000, 40000, 60000, 80000])
plt.savefig(os.path.join(ws, "capture_fraction_100y.png"), dpi=300)

../_images/Notebooks_groundwater_paper_uspb_example_17_0.png
