Note
This page was generated from Notebooks/mt3dms_examples. Download as
.
a Jupyter notebook (.ipynb) or Python script (.py) or launch interactively with Binder .MT3DMS Example Problems
The purpose of this notebook is to recreate the example problems that are described in the 1999 MT3DMS report.
There are 10 example problems: 1. One-Dimensional Transport in a Uniform Flow Field 2. One-Dimensional Transport with Nonlinear or Nonequilibrium Sorption 3. Two-Dimensional Transport in a Uniform Flow Field 4. Two-Dimensional Transport in a Diagonal Flow Field 5. Two-Dimensional Transport in a Radial Flow Field 6. Concentration at an Injection/Extraction Well 7. Three-Dimensional Transport in a Uniform Flow Field 8. Two-Dimensional, Vertical Transport in a Heterogeneous Aquifer 9. Two-Dimensional Application Example 10. Three-Dimensional Field Case Study
[1]:
import os
[2]:
import sys
from tempfile import TemporaryDirectory
import matplotlib as mpl
import matplotlib.pyplot as plt
import numpy as np
# run installed version of flopy or add local path
try:
import flopy
except:
fpth = os.path.abspath(os.path.join("..", ".."))
sys.path.append(fpth)
import flopy
from flopy.utils.util_array import read1d
mpl.rcParams["figure.figsize"] = (8, 8)
exe_name_mf = "mf2005"
exe_name_mt = "mt3dms"
datadir = os.path.join("..", "..", "examples", "data", "mt3d_test", "mt3dms")
# temporary directory
temp_dir = TemporaryDirectory()
workdir = temp_dir.name
print(sys.version)
print("numpy version: {}".format(np.__version__))
print("matplotlib version: {}".format(mpl.__version__))
print("flopy version: {}".format(flopy.__version__))
3.8.17 (default, Jun 7 2023, 12:29:56)
[GCC 11.3.0]
numpy version: 1.24.4
matplotlib version: 3.7.2
flopy version: 3.4.2
Example 1. One-Dimensional Transport in a Uniform Flow Field
This example has 4 cases: * Case 1a: Advection only * Case 1b: Advection and dispersion * Case 1c: Advection, dispersion, and sorption * Case 1d: Advection, dispersion, sorption, and decay
[3]:
def p01(dirname, al, retardation, lambda1, mixelm):
model_ws = os.path.join(workdir, dirname)
nlay = 1
nrow = 1
ncol = 101
delr = 10
delc = 1
delv = 1
Lx = (ncol - 1) * delr
v = 0.24
prsity = 0.25
q = v * prsity
perlen = 2000.0
hk = 1.0
laytyp = 0
rhob = 0.25
kd = (retardation - 1.0) * prsity / rhob
modelname_mf = dirname + "_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=0.0,
botm=[0 - delv],
perlen=perlen,
)
ibound = np.ones((nlay, nrow, ncol), dtype=int)
ibound[0, 0, 0] = -1
ibound[0, 0, -1] = -1
strt = np.zeros((nlay, nrow, ncol), dtype=float)
h1 = q * Lx
strt[0, 0, 0] = h1
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, laytyp=laytyp)
pcg = flopy.modflow.ModflowPcg(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
success, buff = mf.run_model(silent=True, report=True)
if success:
for line in buff:
print(line)
else:
raise ValueError("Failed to run.")
modelname_mt = dirname + "_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
c0 = 1.0
icbund = np.ones((nlay, nrow, ncol), dtype=int)
icbund[0, 0, 0] = -1
sconc = np.zeros((nlay, nrow, ncol), dtype=float)
sconc[0, 0, 0] = c0
btn = flopy.mt3d.Mt3dBtn(mt, icbund=icbund, prsity=prsity, sconc=sconc)
dceps = 1.0e-5
nplane = 1
npl = 0
nph = 4
npmin = 0
npmax = 8
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=0.5,
)
dsp = flopy.mt3d.Mt3dDsp(mt, al=al)
rct = flopy.mt3d.Mt3dRct(
mt,
isothm=1,
ireact=1,
igetsc=0,
rhob=rhob,
sp1=kd,
rc1=lambda1,
rc2=lambda1,
)
ssm = flopy.mt3d.Mt3dSsm(mt)
gcg = flopy.mt3d.Mt3dGcg(mt)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[4]:

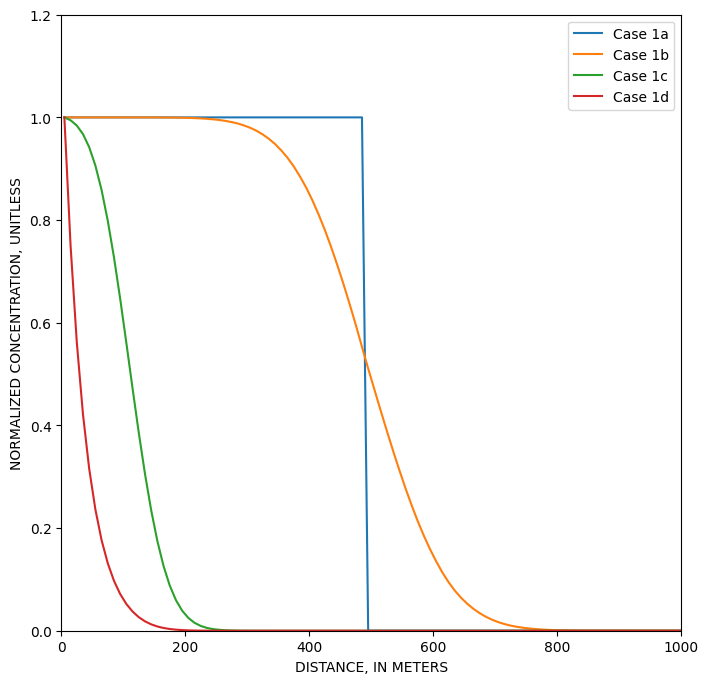

mf, mt, conc, cvt, mvt = p01("case1a", 0, 1, 0, 1)
x = mf.modelgrid.xcellcenters.ravel()
y = conc[0, 0, 0, :]
plt.plot(x, y, label="Case 1a")
mf, mt, conc, cvt, mvt = p01("case1b", 10, 1, 0, 1)
y = conc[0, 0, 0, :]
plt.plot(x, y, label="Case 1b")
mf, mt, conc, cvt, mvt = p01("case1c", 10, 5, 0, 2)
y = conc[0, 0, 0, :]
plt.plot(x, y, label="Case 1c")
mf, mt, conc, cvt, mvt = p01("case1d", 10, 5, 0.002, 2)
y = conc[0, 0, 0, :]
plt.plot(x, y, label="Case 1d")
plt.xlim(0, 1000)
plt.ylim(0, 1.2)
plt.xlabel("DISTANCE, IN METERS")
plt.ylabel("NORMALIZED CONCENTRATION, UNITLESS")
plt.legend()
MODFLOW-2005
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUND-WATER FLOW MODEL
Version 1.12.00 2/3/2017
Using NAME file: case1a_mf.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:33
Solving: Stress period: 1 Time step: 1 Ground-Water Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:33
Elapsed run time: 0.001 Seconds
Normal termination of simulation
MODFLOW-2005
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUND-WATER FLOW MODEL
Version 1.12.00 2/3/2017
Using NAME file: case1b_mf.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:33
Solving: Stress period: 1 Time step: 1 Ground-Water Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:33
Elapsed run time: 0.001 Seconds
Normal termination of simulation
MODFLOW-2005
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUND-WATER FLOW MODEL
Version 1.12.00 2/3/2017
Using NAME file: case1c_mf.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:33
Solving: Stress period: 1 Time step: 1 Ground-Water Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:33
Elapsed run time: 0.001 Seconds
Normal termination of simulation
MODFLOW-2005
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUND-WATER FLOW MODEL
Version 1.12.00 2/3/2017
Using NAME file: case1d_mf.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:33
Solving: Stress period: 1 Time step: 1 Ground-Water Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:33
Elapsed run time: 0.001 Seconds
Normal termination of simulation
[4]:
<matplotlib.legend.Legend at 0x7f30455c2250>
[5]:

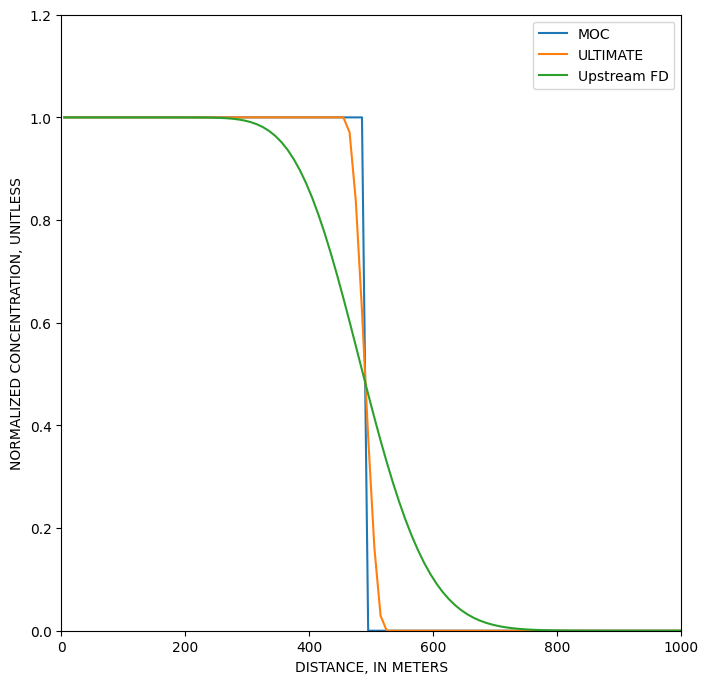

mf, mt, conc, cvt, mvt = p01("case1e", 0, 1, 0, 1)
y = conc[0, 0, 0, :]
plt.plot(x, y, label="MOC")
mf, mt, conc, cvt, mvt = p01("case1f", 0, 1, 0, -1)
y = conc[0, 0, 0, :]
plt.plot(x, y, label="ULTIMATE")
mf, mt, conc, cvt, mvt = p01("case1g", 0, 1, 0, 0)
y = conc[0, 0, 0, :]
plt.plot(x, y, label="Upstream FD")
plt.xlim(0, 1000)
plt.ylim(0, 1.2)
plt.xlabel("DISTANCE, IN METERS")
plt.ylabel("NORMALIZED CONCENTRATION, UNITLESS")
plt.legend()
MODFLOW-2005
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUND-WATER FLOW MODEL
Version 1.12.00 2/3/2017
Using NAME file: case1e_mf.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:34
Solving: Stress period: 1 Time step: 1 Ground-Water Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:34
Elapsed run time: 0.001 Seconds
Normal termination of simulation
MODFLOW-2005
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUND-WATER FLOW MODEL
Version 1.12.00 2/3/2017
Using NAME file: case1f_mf.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:34
Solving: Stress period: 1 Time step: 1 Ground-Water Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:34
Elapsed run time: 0.001 Seconds
Normal termination of simulation
MODFLOW-2005
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUND-WATER FLOW MODEL
Version 1.12.00 2/3/2017
Using NAME file: case1g_mf.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:34
Solving: Stress period: 1 Time step: 1 Ground-Water Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:34
Elapsed run time: 0.001 Seconds
Normal termination of simulation
[5]:
<matplotlib.legend.Legend at 0x7f30455cef40>
[6]:

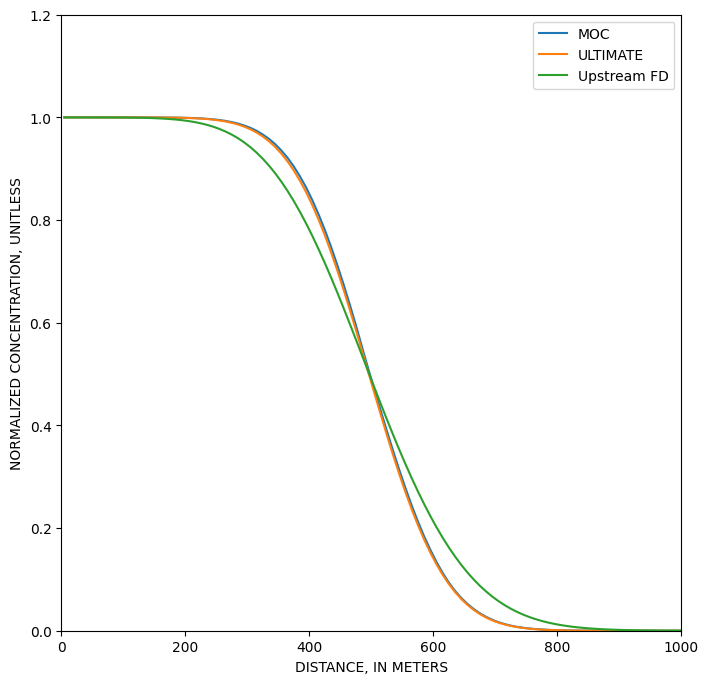

mf, mt, conc, cvt, mvt = p01("case1e", 10, 1, 0, 1)
y = conc[0, 0, 0, :]
plt.plot(x, y, label="MOC")
mf, mt, conc, cvt, mvt = p01("case1f", 10, 1, 0, -1)
y = conc[0, 0, 0, :]
plt.plot(x, y, label="ULTIMATE")
mf, mt, conc, cvt, mvt = p01("case1g", 10, 1, 0, 0)
y = conc[0, 0, 0, :]
plt.plot(x, y, label="Upstream FD")
plt.xlim(0, 1000)
plt.ylim(0, 1.2)
plt.xlabel("DISTANCE, IN METERS")
plt.ylabel("NORMALIZED CONCENTRATION, UNITLESS")
plt.legend()
MODFLOW-2005
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUND-WATER FLOW MODEL
Version 1.12.00 2/3/2017
Using NAME file: case1e_mf.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:34
Solving: Stress period: 1 Time step: 1 Ground-Water Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:34
Elapsed run time: 0.001 Seconds
Normal termination of simulation
MODFLOW-2005
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUND-WATER FLOW MODEL
Version 1.12.00 2/3/2017
Using NAME file: case1f_mf.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:34
Solving: Stress period: 1 Time step: 1 Ground-Water Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:34
Elapsed run time: 0.001 Seconds
Normal termination of simulation
MODFLOW-2005
U.S. GEOLOGICAL SURVEY MODULAR FINITE-DIFFERENCE GROUND-WATER FLOW MODEL
Version 1.12.00 2/3/2017
Using NAME file: case1g_mf.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:34
Solving: Stress period: 1 Time step: 1 Ground-Water Flow Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2023/08/25 23:31:34
Elapsed run time: 0.002 Seconds
Normal termination of simulation
[6]:
<matplotlib.legend.Legend at 0x7f30454c2df0>

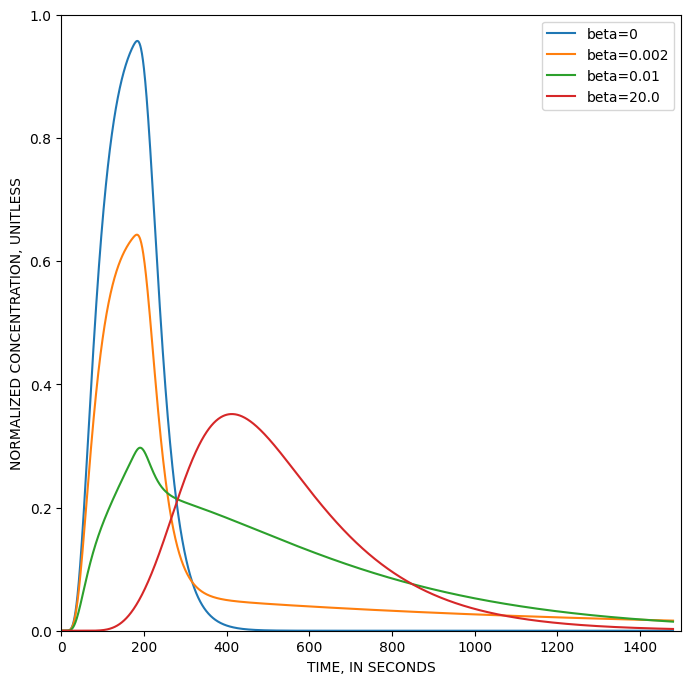

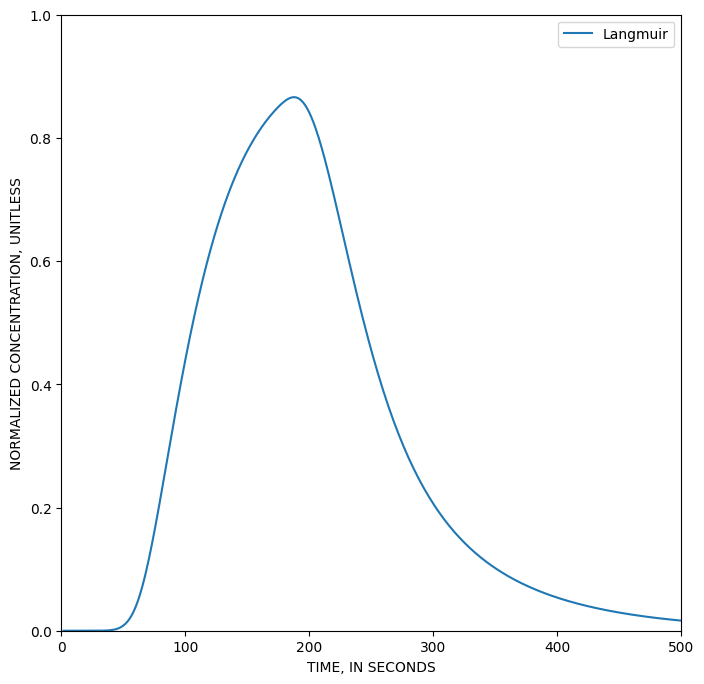

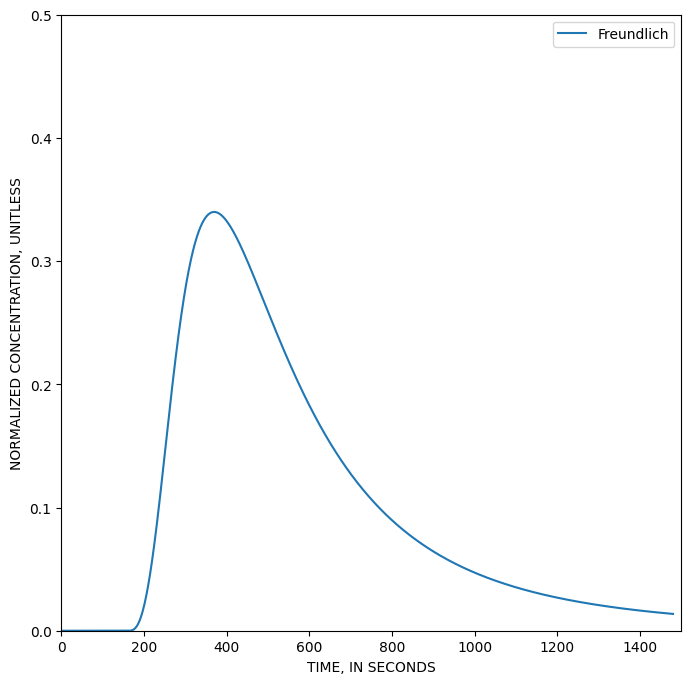

Example 2. One-Dimensional Transport with Nonlinear or Nonequilibrium Sorption
[7]:
def p02(dirname, isothm, sp1, sp2, mixelm):
model_ws = os.path.join(workdir, dirname)
nlay = 1
nrow = 1
ncol = 101
delr = 0.16
delc = 1
delv = 1
Lx = (ncol - 1) * delr
v = 0.1
prsity = 0.37
q = v * prsity
perlen_mf = 1.0
perlen_mt = [160, 1320]
hk = 1.0
laytyp = 0
rhob = 1.587
modelname_mf = dirname + "_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=0.0,
botm=[0 - delv],
perlen=perlen_mf,
)
ibound = np.ones((nlay, nrow, ncol), dtype=int)
ibound[0, 0, 0] = -1
ibound[0, 0, -1] = -1
strt = np.zeros((nlay, nrow, ncol), dtype=float)
h1 = q * Lx
strt[0, 0, 0] = h1
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, laytyp=laytyp)
pcg = flopy.modflow.ModflowPcg(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
mf.run_model(silent=True)
modelname_mt = dirname + "_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
btn = flopy.mt3d.Mt3dBtn(
mt,
icbund=1,
prsity=prsity,
sconc=0,
nper=2,
perlen=perlen_mt,
obs=[(0, 0, 50)],
)
dceps = 1.0e-5
nplane = 1
npl = 0
nph = 4
npmin = 0
npmax = 8
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=0.5,
)
al = 1.0
dsp = flopy.mt3d.Mt3dDsp(mt, al=al)
rct = flopy.mt3d.Mt3dRct(
mt, isothm=isothm, ireact=0, igetsc=0, rhob=rhob, sp1=sp1, sp2=sp2
)
c0 = 0.05
spd = {0: [0, 0, 0, c0, 1], 1: [0, 0, 0, 0.0, 1]}
ssm = flopy.mt3d.Mt3dSsm(mt, stress_period_data=spd)
gcg = flopy.mt3d.Mt3dGcg(mt)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[8]:
mf, mt, conc, cvt, mvt = p02("freundlich", 2, 0.3, 0.7, -1)
x = cvt["time"]
y = cvt["(1, 1, 51)"] / 0.05
plt.plot(x, y, label="Freundlich")
plt.xlim(0, 1500)
plt.ylim(0, 0.5)
plt.xlabel("TIME, IN SECONDS")
plt.ylabel("NORMALIZED CONCENTRATION, UNITLESS")
plt.legend()
[8]:
<matplotlib.legend.Legend at 0x7f30454c2f40>
[9]:
mf, mt, conc, cvt, mvt = p02("langmuir", 3, 100.0, 0.003, -1)
x = cvt["time"]
y = cvt["(1, 1, 51)"] / 0.05
plt.plot(x, y, label="Langmuir")
plt.xlim(0, 500)
plt.ylim(0, 1.0)
plt.xlabel("TIME, IN SECONDS")
plt.ylabel("NORMALIZED CONCENTRATION, UNITLESS")
plt.legend()
[9]:
<matplotlib.legend.Legend at 0x7f304549bf10>
[10]:
for beta in [0, 2.0e-3, 1.0e-2, 20.0]:
lbl = "beta={}".format(beta)
mf, mt, conc, cvt, mvt = p02("nonequilibrium", 4, 0.933, beta, -1)
x = cvt["time"]
y = cvt["(1, 1, 51)"] / 0.05
plt.plot(x, y, label=lbl)
plt.xlim(0, 1500)
plt.ylim(0, 1.0)
plt.xlabel("TIME, IN SECONDS")
plt.ylabel("NORMALIZED CONCENTRATION, UNITLESS")
plt.legend()
[10]:
<matplotlib.legend.Legend at 0x7f304534ae80>
Example 3. Two-Dimensional Transport in a Uniform Flow Field
[11]:
def p03(dirname, mixelm):
model_ws = os.path.join(workdir, dirname)
nlay = 1
nrow = 31
ncol = 46
delr = 10
delc = 10
delv = 10
Lx = (ncol - 1) * delr
v = 1.0 / 3.0
prsity = 0.3
q = v * prsity
al = 10.0
trpt = 0.3
q0 = 1.0
c0 = 1000.0
perlen_mf = 365.0
perlen_mt = 365.0
hk = 1.0
laytyp = 0
modelname_mf = dirname + "_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=0.0,
botm=[0 - delv],
perlen=perlen_mf,
)
ibound = np.ones((nlay, nrow, ncol), dtype=int)
ibound[0, :, 0] = -1
ibound[0, :, -1] = -1
strt = np.zeros((nlay, nrow, ncol), dtype=float)
h1 = q * Lx
strt[0, :, 0] = h1
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, laytyp=laytyp)
wel = flopy.modflow.ModflowWel(mf, stress_period_data=[[0, 15, 15, q0]])
pcg = flopy.modflow.ModflowPcg(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
mf.run_model(silent=True)
modelname_mt = dirname + "_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
btn = flopy.mt3d.Mt3dBtn(mt, icbund=1, prsity=prsity, sconc=0)
dceps = 1.0e-5
nplane = 1
npl = 0
nph = 16
npmin = 2
npmax = 32
dchmoc = 1.0e-3
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=0.5,
)
dsp = flopy.mt3d.Mt3dDsp(mt, al=al, trpt=trpt)
spd = {0: [0, 15, 15, c0, 2]}
ssm = flopy.mt3d.Mt3dSsm(mt, stress_period_data=spd)
gcg = flopy.mt3d.Mt3dGcg(mt)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[12]:

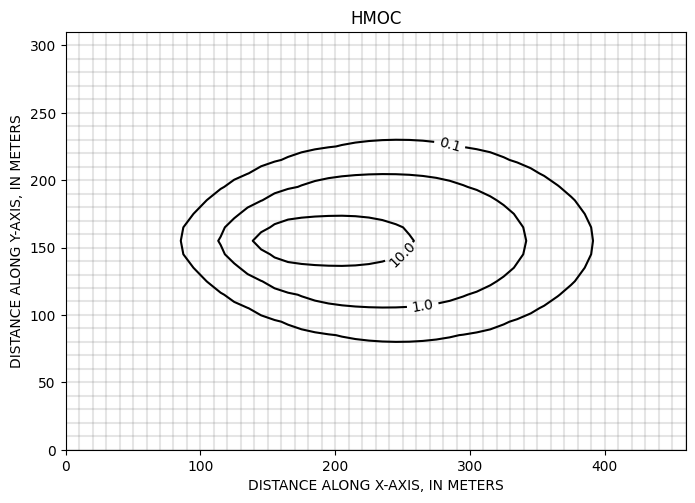

ax = plt.subplot(1, 1, 1, aspect="equal")
mf, mt, conc, cvt, mvt = p03("p03", 3)
conc = conc[0, :, :, :]
pmv = flopy.plot.PlotMapView(model=mf)
pmv.plot_grid(color=".5", alpha=0.2)
cs = pmv.contour_array(conc, levels=[0.1, 1.0, 10.0, 50.0], colors="k")
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("HMOC")
[12]:
Text(0.5, 1.0, 'HMOC')
[13]:

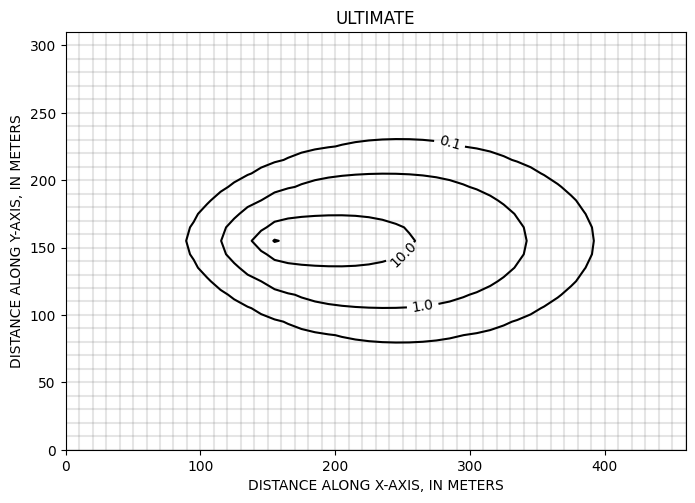

ax = plt.subplot(1, 1, 1, aspect="equal")
mf, mt, conc, cvt, mvt = p03("p03", -1)
conc = conc[0, :, :, :]
pmv = flopy.plot.PlotMapView(model=mf)
pmv.plot_grid(color=".5", alpha=0.2)
cs = pmv.contour_array(conc, levels=[0.1, 1.0, 10.0, 50.0], colors="k")
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("ULTIMATE")
[13]:
Text(0.5, 1.0, 'ULTIMATE')
Example 4. Two-Dimensional Transport in a Diagonal Flow Field
[14]:
def p04(dirname, mixelm):
model_ws = os.path.join(workdir, dirname)
nlay = 1
nrow = 100
ncol = 100
delr = 10
delc = 10
delv = 1
Lx = (ncol - 1) * delr
Ly = (nrow - 1) * delc
Ls = np.sqrt(Lx**2 + Ly**2)
v = 1.0
prsity = 0.14
q = v * prsity
al = 2.0
trpt = 0.1
q0 = 0.01
c0 = 1000.0
perlen_mf = 1000.0
perlen_mt = 1000.0
hk = 1.0
laytyp = 0
modelname_mf = dirname + "_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=0.0,
botm=[0 - delv],
perlen=perlen_mf,
)
ibound = np.ones((nlay, nrow, ncol), dtype=int) * -1
ibound[:, 1 : nrow - 1, 1 : ncol - 1] = 1
# set strt as a linear gradient at a 45 degree angle
h1 = q * Ls
x = mf.modelgrid.xcellcenters
y = mf.modelgrid.ycellcenters
a = -1
b = -1
c = 1
d = abs(a * x + b * y + c) / np.sqrt(2)
strt = h1 - d / Ls * h1
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, laytyp=laytyp)
wel = flopy.modflow.ModflowWel(mf, stress_period_data=[[0, 79, 20, q0]])
pcg = flopy.modflow.ModflowPcg(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
mf.run_model(silent=True)
modelname_mt = dirname + "_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
btn = flopy.mt3d.Mt3dBtn(mt, icbund=1, prsity=prsity, sconc=0)
dceps = 1.0e-5
nplane = 1
npl = 0
nph = 16
npmin = 2
npmax = 32
dchmoc = 1.0e-3
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=0.5,
)
dsp = flopy.mt3d.Mt3dDsp(mt, al=al, trpt=trpt)
spd = {0: [0, 79, 20, c0, 2]}
ssm = flopy.mt3d.Mt3dSsm(mt, stress_period_data=spd)
gcg = flopy.mt3d.Mt3dGcg(mt)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[15]:

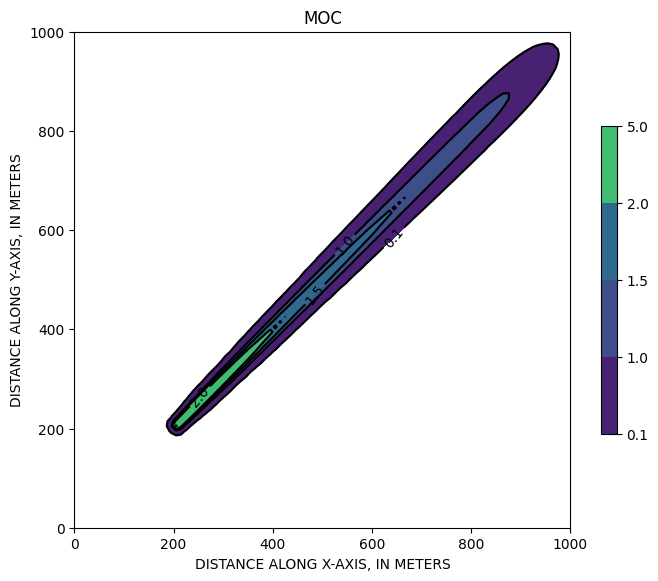

ax = plt.subplot(1, 1, 1, aspect="equal")
mf, mt, conc, cvt, mvt = p04("p04", 1)
grid = mf.modelgrid
conc = conc[0, :, :, :]
levels = [0.1, 1.0, 1.5, 2.0, 5.0]
pmv = flopy.plot.PlotMapView(model=mf)
cf = plt.contourf(grid.xcellcenters, grid.ycellcenters, conc[0], levels=levels)
plt.colorbar(cf, shrink=0.5)
cs = pmv.contour_array(conc, levels=levels, colors="k")
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("MOC")
[15]:
Text(0.5, 1.0, 'MOC')
[16]:

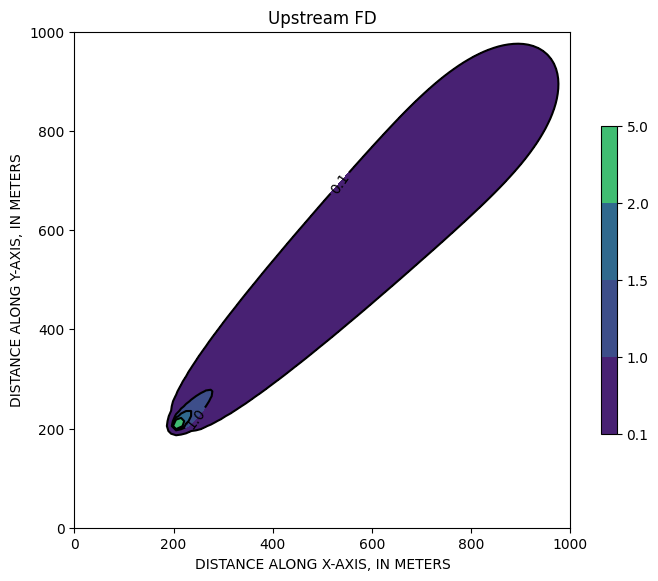

ax = plt.subplot(1, 1, 1, aspect="equal")
mf, mt, conc, cvt, mvt = p04("p04", 0)
grid = mf.modelgrid
conc = conc[0, :, :, :]
levels = [0.1, 1.0, 1.5, 2.0, 5.0]
pmv = flopy.plot.PlotMapView(model=mf)
cf = plt.contourf(grid.xcellcenters, grid.ycellcenters, conc[0], levels=levels)
plt.colorbar(cf, shrink=0.5)
cs = pmv.contour_array(conc, levels=levels, colors="k")
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("Upstream FD")
[16]:
Text(0.5, 1.0, 'Upstream FD')
[17]:

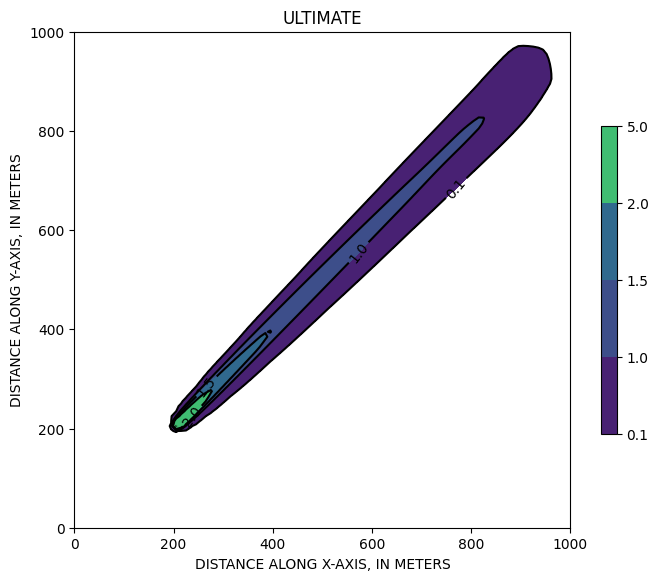

ax = plt.subplot(1, 1, 1, aspect="equal")
mf, mt, conc, cvt, mvt = p04("p04", -1)
grid = mf.modelgrid
conc = conc[0, :, :, :]
levels = [0.1, 1.0, 1.5, 2.0, 5.0]
pmv = flopy.plot.PlotMapView(model=mf)
cf = plt.contourf(grid.xcellcenters, grid.ycellcenters, conc[0], levels=levels)
plt.colorbar(cf, shrink=0.5)
cs = pmv.contour_array(conc, levels=levels, colors="k")
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("ULTIMATE")
[17]:
Text(0.5, 1.0, 'ULTIMATE')

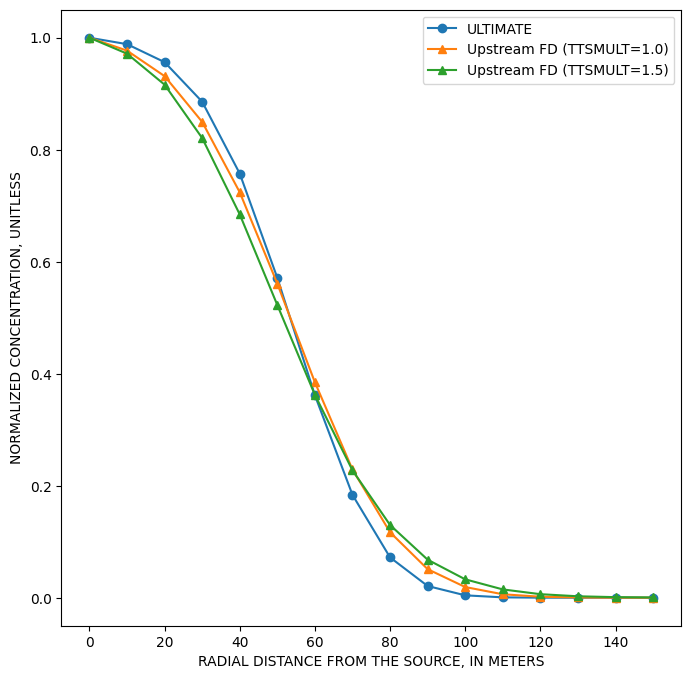

Example 5. Two-Dimensional Transport in a Radial Flow Field
[18]:
def p05(dirname, mixelm, dt0, ttsmult):
model_ws = os.path.join(workdir, dirname)
nlay = 1
nrow = 31
ncol = 31
delr = 10
delc = 10
delv = 1
prsity = 0.30
al = 10.0
trpt = 1.0
q0 = 100.0
c0 = 1.0
perlen_mf = 27.0
perlen_mt = 27.0
hk = 1.0
laytyp = 0
modelname_mf = dirname + "_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=0.0,
botm=[0 - delv],
perlen=perlen_mf,
)
ibound = np.ones((nlay, nrow, ncol), dtype=int) * -1
ibound[:, 1 : nrow - 1, 1 : ncol - 1] = 1
strt = 0.0
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, laytyp=laytyp)
wel = flopy.modflow.ModflowWel(mf, stress_period_data=[[0, 15, 15, q0]])
sip = flopy.modflow.ModflowSip(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
mf.run_model(silent=True)
modelname_mt = dirname + "_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
btn = flopy.mt3d.Mt3dBtn(
mt, icbund=1, prsity=prsity, sconc=0, dt0=dt0, ttsmult=ttsmult
)
dceps = 1.0e-5
nplane = 1
npl = 0
nph = 16
npmin = 2
npmax = 32
dchmoc = 1.0e-3
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=0.5,
)
dsp = flopy.mt3d.Mt3dDsp(mt, al=al, trpt=trpt)
spd = {0: [0, 15, 15, c0, -1]}
ssm = flopy.mt3d.Mt3dSsm(mt, stress_period_data=spd)
gcg = flopy.mt3d.Mt3dGcg(mt)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[19]:
mf, mt, conc, cvt, mvt = p05("p05", -1, 0.3, 1.0)
grid = mf.modelgrid
conc = conc[0, 0, :, :]
x = grid.xcellcenters[15, 15:] - grid.xcellcenters[15, 15]
y = conc[15, 15:]
plt.plot(x, y, label="ULTIMATE", marker="o")
mf, mt, conc, cvt, mvt = p05("p05", 0, 0.3, 1.0)
conc = conc[0, 0, :, :]
x = grid.xcellcenters[15, 15:] - grid.xcellcenters[15, 15]
y = conc[15, 15:]
plt.plot(x, y, label="Upstream FD (TTSMULT=1.0)", marker="^")
mf, mt, conc, cvt, mvt = p05("p05", 0, 0.3, 1.5)
conc = conc[0, 0, :, :]
x = grid.xcellcenters[15, 15:] - grid.xcellcenters[15, 15]
y = conc[15, 15:]
plt.plot(x, y, label="Upstream FD (TTSMULT=1.5)", marker="^")
plt.xlabel("RADIAL DISTANCE FROM THE SOURCE, IN METERS")
plt.ylabel("NORMALIZED CONCENTRATION, UNITLESS")
plt.legend()
[19]:
<matplotlib.legend.Legend at 0x7f3040ae7370>
[20]:

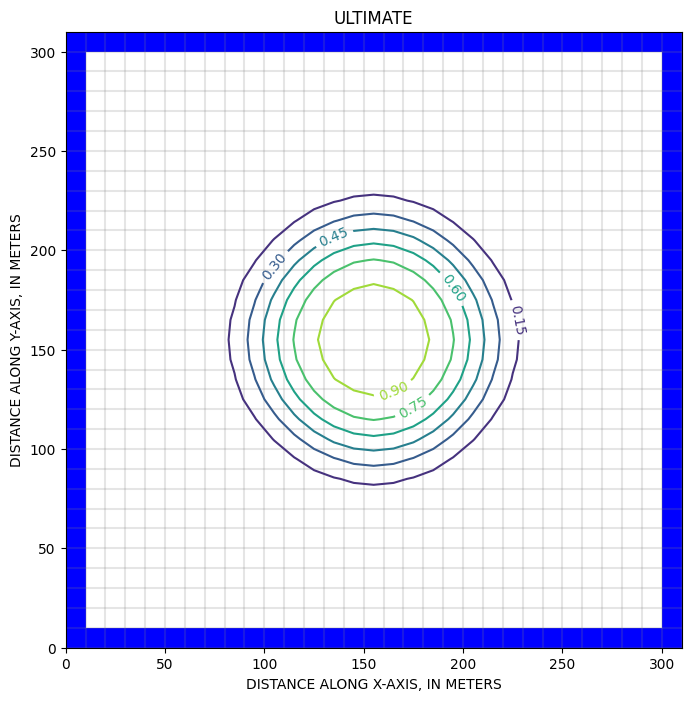

ax = plt.subplot(1, 1, 1, aspect="equal")
mf, mt, conc, cvt, mvt = p05("p05", -1, 0.3, 1.0)
pmv = flopy.plot.PlotMapView(model=mf)
pmv.plot_grid(color=".5", alpha=0.2)
pmv.plot_ibound()
cs = pmv.contour_array(conc[0])
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("ULTIMATE")
[20]:
Text(0.5, 1.0, 'ULTIMATE')
Example 6. Concentration at an Injection/Extraction Well
[21]:
def p06(dirname, mixelm, dt0):
model_ws = os.path.join(workdir, dirname)
nlay = 1
nrow = 31
ncol = 31
delr = 900
delc = 900
delv = 20
prsity = 0.30
al = 100.0
trpt = 1.0
q0 = 86400.0
c0 = 100.0
perlen_mf = [912.5, 2737.5]
perlen_mt = perlen_mf
hk = 0.005 * 86400
laytyp = 0
modelname_mf = dirname + "_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=0.0,
botm=[0 - delv],
nper=2,
perlen=perlen_mf,
)
ibound = np.ones((nlay, nrow, ncol), dtype=int) * -1
ibound[:, 1 : nrow - 1, 1 : ncol - 1] = 1
strt = 0.0
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, laytyp=laytyp)
welspd = {0: [[0, 15, 15, q0]], 1: [[0, 15, 15, -q0]]}
wel = flopy.modflow.ModflowWel(mf, stress_period_data=welspd)
sip = flopy.modflow.ModflowSip(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
mf.run_model(silent=True)
modelname_mt = dirname + "_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
btn = flopy.mt3d.Mt3dBtn(
mt,
icbund=1,
prsity=prsity,
sconc=0,
nper=2,
perlen=perlen_mt,
dt0=dt0,
obs=[(0, 15, 15)],
)
dceps = 1.0e-5
nplane = 1
npl = 16
nph = 16
npmin = 4
npmax = 32
dchmoc = 1.0e-3
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=0.5,
)
dsp = flopy.mt3d.Mt3dDsp(mt, al=al, trpt=trpt)
spd = {0: [0, 15, 15, c0, 2], 1: [0, 15, 15, 0.0, 2]}
ssm = flopy.mt3d.Mt3dSsm(mt, stress_period_data=spd)
gcg = flopy.mt3d.Mt3dGcg(mt)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[22]:

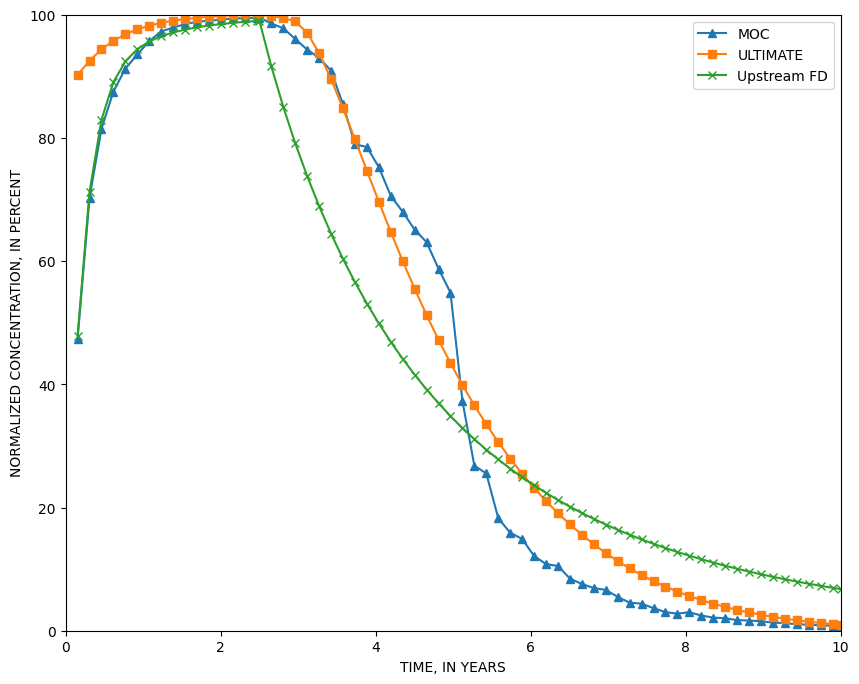

fig = plt.figure(figsize=(10, 8))
ax = fig.add_subplot(1, 1, 1)
mf, mt, conc, cvt, mvt = p06("p06", 1, 56.25)
x = cvt["time"] / 365.0
y = cvt["(1, 16, 16)"]
ax.plot(x, y, label="MOC", marker="^")
mf, mt, conc, cvt, mvt = p06("p06", -1, 56.25)
x = cvt["time"] / 365.0
y = cvt["(1, 16, 16)"]
ax.plot(x, y, label="ULTIMATE", marker="s")
mf, mt, conc, cvt, mvt = p06("p06", 0, 56.25)
x = cvt["time"] / 365.0
y = cvt["(1, 16, 16)"]
ax.plot(x, y, label="Upstream FD", marker="x")
plt.xlim(0, 10)
plt.ylim(0, 100.0)
plt.xlabel("TIME, IN YEARS")
plt.ylabel("NORMALIZED CONCENTRATION, IN PERCENT")
plt.legend()
[22]:
<matplotlib.legend.Legend at 0x7f3040ab2ac0>
Example 7. Three-Dimensional Transport in a Uniform Flow Field
[23]:
def p07(dirname, mixelm):
model_ws = os.path.join(workdir, dirname)
nlay = 8
nrow = 15
ncol = 21
delr = 10
delc = 10
delv = 10
Lx = (ncol - 1) * delr
v = 1.0 / 3.0
prsity = 0.2
q = v * prsity
al = 10.0
trpt = 0.3
trpv = 0.3
q0 = 0.5
c0 = 100.0
perlen_mf = 100.0
perlen_mt = 100.0
hk = 0.5
laytyp = 0
modelname_mf = dirname + "_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=0.0,
botm=[-delv * k for k in range(1, nlay + 1)],
perlen=perlen_mf,
)
ibound = np.ones((nlay, nrow, ncol), dtype=int)
ibound[:, :, 0] = -1
ibound[:, :, -1] = -1
strt = np.zeros((nlay, nrow, ncol), dtype=float)
h1 = q * Lx
strt[:, :, 0] = h1
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, laytyp=laytyp)
wel = flopy.modflow.ModflowWel(mf, stress_period_data=[[6, 7, 2, q0]])
pcg = flopy.modflow.ModflowPcg(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
mf.run_model(silent=True)
modelname_mt = dirname + "_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
btn = flopy.mt3d.Mt3dBtn(mt, icbund=1, prsity=prsity, sconc=0)
dceps = 1.0e-5
nplane = 1
npl = 0
nph = 16
npmin = 2
npmax = 32
dchmoc = 1.0e-3
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=0.5,
)
dsp = flopy.mt3d.Mt3dDsp(mt, al=al, trpt=trpt, trpv=trpv)
spd = {0: [6, 7, 2, c0, 2]}
ssm = flopy.mt3d.Mt3dSsm(mt, stress_period_data=spd)
gcg = flopy.mt3d.Mt3dGcg(mt)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[24]:

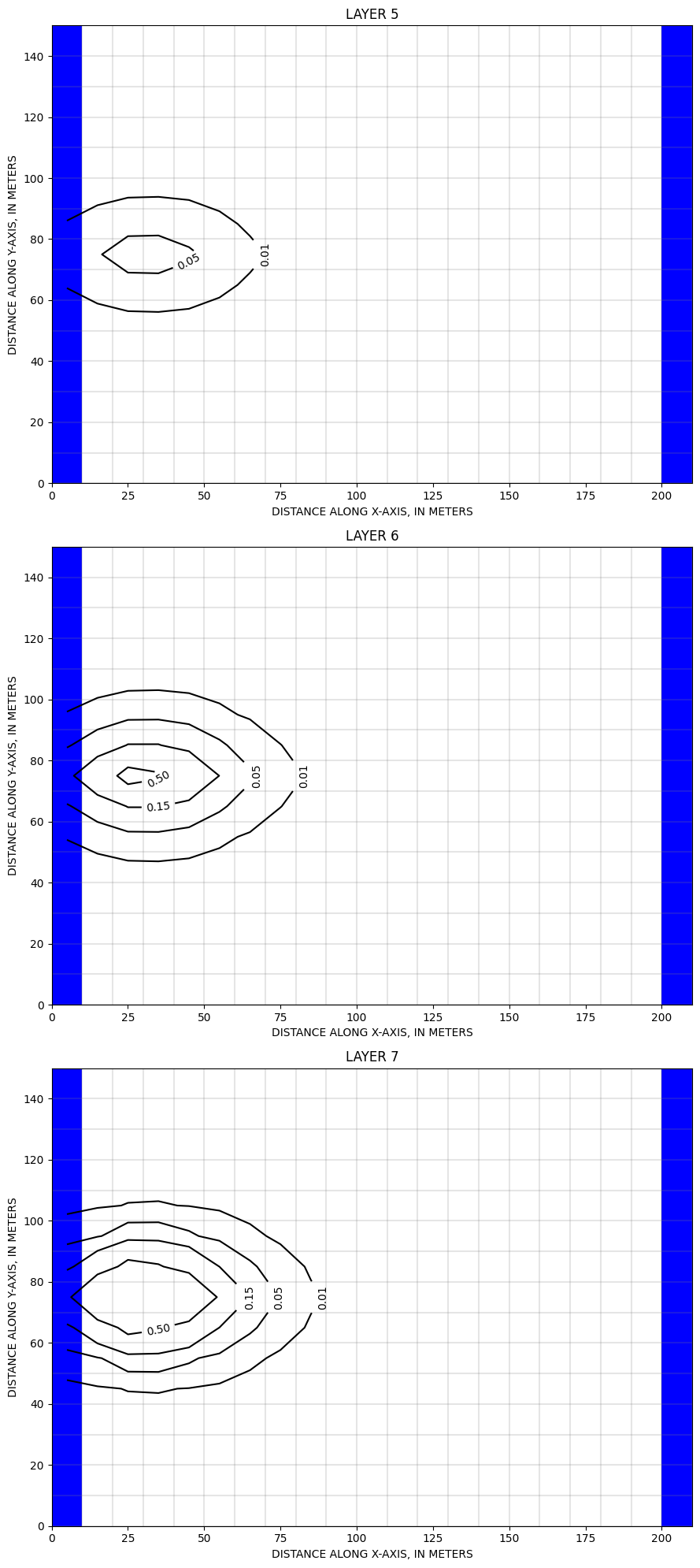

fig = plt.figure(figsize=(10, 20))
mf, mt, conc, cvt, mvt = p07("p07", -1)
conc = conc[0]
ax = fig.add_subplot(3, 1, 1, aspect="equal")
ilay = 4
pmv = flopy.plot.PlotMapView(ax=ax, model=mf, layer=ilay)
pmv.plot_grid(color=".5", alpha=0.2)
pmv.plot_ibound()
cs = pmv.contour_array(conc, levels=[0.01, 0.05, 0.15, 0.50], colors="k")
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("LAYER {}".format(ilay + 1))
ax = fig.add_subplot(3, 1, 2, aspect="equal")
ilay = 5
pmv = flopy.plot.PlotMapView(ax=ax, model=mf, layer=ilay)
pmv.plot_grid(color=".5", alpha=0.2)
pmv.plot_ibound()
cs = pmv.contour_array(conc, levels=[0.01, 0.05, 0.15, 0.50], colors="k")
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("LAYER {}".format(ilay + 1))
ax = fig.add_subplot(3, 1, 3, aspect="equal")
ilay = 6
pmv = flopy.plot.PlotMapView(ax=ax, model=mf, layer=ilay)
pmv.plot_grid(color=".5", alpha=0.2)
pmv.plot_ibound()
cs = pmv.contour_array(conc, levels=[0.01, 0.05, 0.15, 0.50], colors="k")
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("LAYER {}".format(ilay + 1))
plt.plot(grid.xcellcenters[7, 2], grid.ycellcenters[7, 2], "ko")
plt.tight_layout()
Example 8. Two-Dimensional, Vertical Transport in a Heterogeneous Aquifer
[25]:
def p08(dirname, mixelm):
model_ws = os.path.join(workdir, dirname)
nlay = 27
nrow = 1
ncol = 50
delr = 5
delc = 1
delv = 0.25
prsity = 0.35
al = 0.5
trpt = 0.01
trpv = 0.01
dmcoef = 1.34e-5 / 100 / 100 * 86400
rech = 0.1 / 365 # m/d
perlen_mf = 1
perlen_mt = [5 * 365, 15 * 365]
k1 = 5e-4 / 100.0 * 86400 # m/d
k2 = 1e-2 / 100.0 * 86400 # m/d
hk = k1 * np.ones((nlay, nrow, ncol), dtype=float)
hk[11:19, :, 0:24] = k2
hk[11:19, :, 36:] = k2
laytyp = 6 * [1] + 21 * [0]
modelname_mf = dirname + "_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=6.75,
botm=[6.75 - delv * k for k in range(1, nlay + 1)],
perlen=perlen_mf,
)
f = open(os.path.join(datadir, "p08shead.dat"))
strt = np.empty((nlay * ncol), dtype=float)
strt = read1d(f, strt).reshape((nlay, nrow, ncol))
f.close()
ibound = np.ones((nlay, nrow, ncol), dtype=int)
ibound[5:, :, -1] = -1
ibound[strt < 0] = 0
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, vka=hk, laytyp=laytyp)
rch = flopy.modflow.ModflowRch(mf, rech=rech)
pcg = flopy.modflow.ModflowPcg(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
mf.run_model(silent=True)
modelname_mt = dirname + "_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
btn = flopy.mt3d.Mt3dBtn(
mt,
icbund=1,
prsity=prsity,
sconc=0,
nper=2,
perlen=perlen_mt,
timprs=[8 * 365, 12 * 365, 20 * 365],
)
percel = 1.0
itrack = 3
wd = 0.5
dceps = 1.0e-5
nplane = 0
npl = 0
nph = 10
npmin = 2
npmax = 20
dchmoc = 1.0e-3
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=percel,
itrack=itrack,
wd=wd,
)
dsp = flopy.mt3d.Mt3dDsp(mt, al=al, trpt=trpt, trpv=trpv, dmcoef=dmcoef)
crch1 = np.zeros((nrow, ncol), dtype=float)
crch1[0, 9:18] = 1.0
cnc0 = [(0, 0, j, 1, -1) for j in range(8, 16)]
cnc1 = [(0, 0, j, 0.0, -1) for j in range(8, 16)]
ssmspd = {0: cnc0, 1: cnc1}
ssm = flopy.mt3d.Mt3dSsm(mt, stress_period_data=ssmspd)
gcg = flopy.mt3d.Mt3dGcg(mt)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[26]:

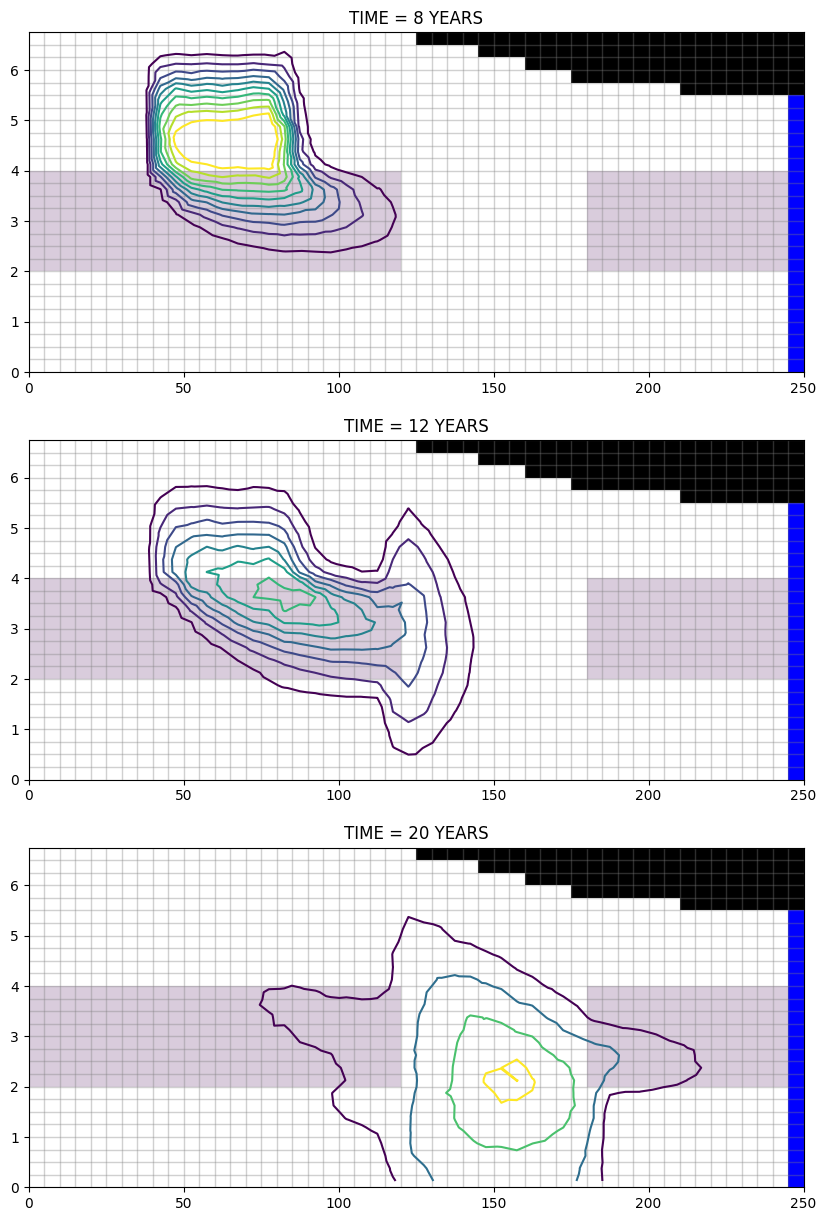

fig = plt.figure(figsize=(10, 15))
mf, mt, conc, cvt, mvt = p08("p08", 3)
hk = mf.lpf.hk.array
ax = fig.add_subplot(3, 1, 1)
mx = flopy.plot.PlotCrossSection(ax=ax, model=mf, line={"row": 0})
mx.plot_array(hk, masked_values=[hk[0, 0, 0]], alpha=0.2)
mx.plot_ibound()
mx.plot_grid(color="0.5", alpha=0.2)
cs = mx.contour_array(
conc[1], levels=np.arange(0.05, 0.55, 0.05), masked_values=[1.0e30]
)
ax.set_title("TIME = 8 YEARS")
ax = fig.add_subplot(3, 1, 2)
mx = flopy.plot.PlotCrossSection(ax=ax, model=mf, line={"row": 0})
mx.plot_array(hk, masked_values=[hk[0, 0, 0]], alpha=0.2)
mx.plot_ibound()
mx.plot_grid(color="0.5", alpha=0.2)
cs = mx.contour_array(
conc[2], levels=np.arange(0.05, 0.55, 0.05), masked_values=[1.0e30]
)
ax.set_title("TIME = 12 YEARS")
ax = fig.add_subplot(3, 1, 3)
mx = flopy.plot.PlotCrossSection(ax=ax, model=mf, line={"row": 0})
mx.plot_array(hk, masked_values=[hk[0, 0, 0]], alpha=0.2)
mx.plot_ibound()
mx.plot_grid(color="0.5", alpha=0.2)
cs = mx.contour_array(
conc[3], levels=[0.05, 0.1, 0.15, 0.19], masked_values=[1.0e30]
)
ax.set_title("TIME = 20 YEARS")
found 'rch' in modflow model, resetting crch to 0.0
[26]:
Text(0.5, 1.0, 'TIME = 20 YEARS')
Example 9. Two-Dimensional Application Example
[27]:
def p09(dirname, mixelm, nadvfd):
model_ws = os.path.join(workdir, dirname)
nlay = 1
nrow = 18
ncol = 14
delr = 100
delc = 100
delv = 10
prsity = 0.3
al = 20.0
trpt = 0.2
perlen_mf = 1.0
perlen_mt = [365.0 * 86400, 365.0 * 86400]
laytyp = 0
k1 = 1.474e-4
k2 = 1.474e-7
hk = k1 * np.ones((nlay, nrow, ncol), dtype=float)
hk[:, 5:8, 1:8] = k2
modelname_mf = dirname + "_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=0.0,
botm=[0 - delv],
perlen=perlen_mf,
)
ibound = np.ones((nlay, nrow, ncol), dtype=int)
ibound[0, 0, :] = -1
ibound[0, -1, :] = -1
strt = np.zeros((nlay, nrow, ncol), dtype=float)
strt[0, 0, :] = 250.0
xc = mf.modelgrid.xcellcenters
for j in range(ncol):
strt[0, -1, j] = 20.0 + (xc[0, j] - xc[0, 0]) * 2.5 / 100
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, laytyp=laytyp)
welspd = [[0, 3, 6, 0.001], [0, 10, 6, -0.0189]]
wel = flopy.modflow.ModflowWel(mf, stress_period_data=welspd)
pcg = flopy.modflow.ModflowPcg(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
mf.run_model(silent=True)
modelname_mt = dirname + "_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
btn = flopy.mt3d.Mt3dBtn(
mt,
icbund=1,
prsity=prsity,
sconc=0,
nper=2,
perlen=perlen_mt,
obs=[[0, 10, 6]],
)
percel = 1.0
itrack = 2
dceps = 1.0e-5
nplane = 0
npl = 0
nph = 16
npmin = 0
npmax = 32
dchmoc = 1.0e-3
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=percel,
itrack=itrack,
nadvfd=nadvfd,
)
dsp = flopy.mt3d.Mt3dDsp(mt, al=al, trpt=trpt)
spd = {
0: [[0, 3, 6, 57.87, 2], [0, 10, 6, 0.0, 2]],
1: [[0, 3, 6, 0.0, 2], [0, 10, 6, 0.0, 2]],
}
ssm = flopy.mt3d.Mt3dSsm(mt, stress_period_data=spd)
gcg = flopy.mt3d.Mt3dGcg(mt)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[28]:

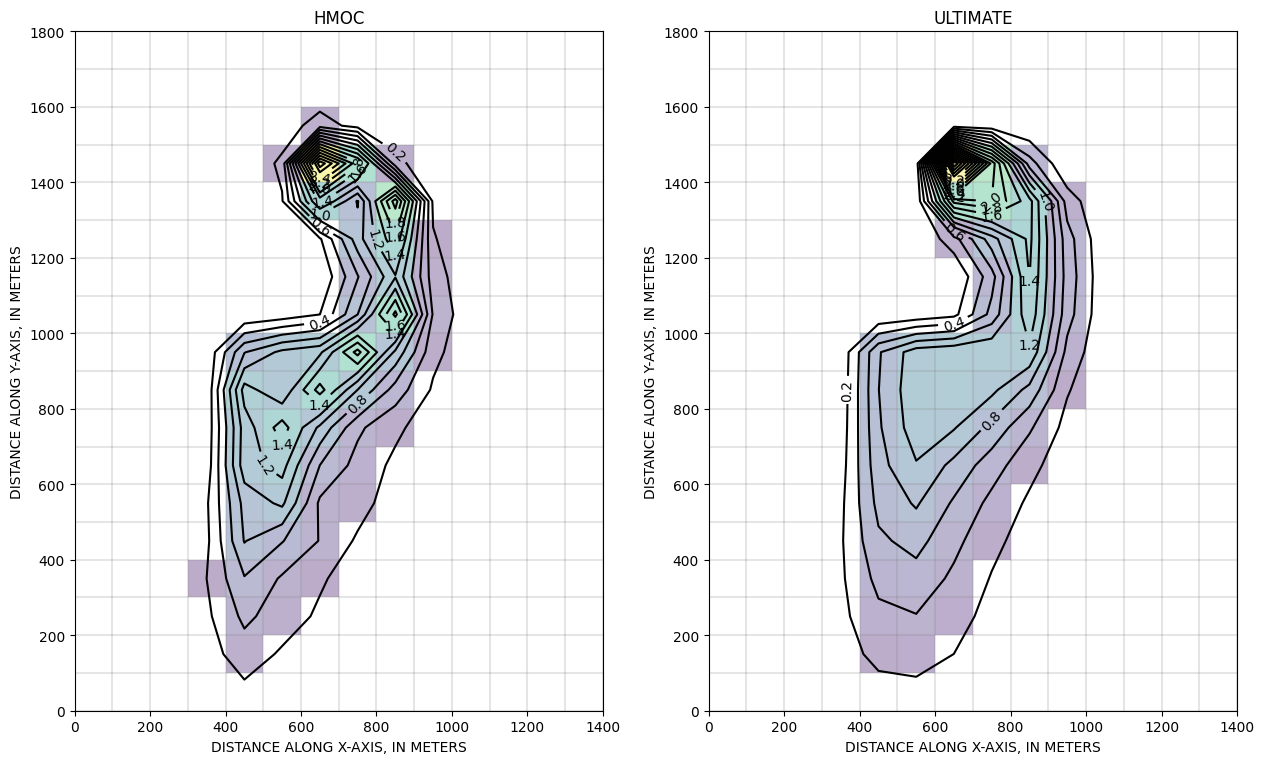

fig = plt.figure(figsize=(15, 10))
levels = np.arange(0.2, 10, 0.2)
ax = fig.add_subplot(1, 2, 1, aspect="equal")
mf, mt, conc, cvt, mvt = p09("p09", 3, 1)
cvt["time"] / 365.0 / 86400.0
y = cvt["(1, 11, 7)"]
conc = conc[:, 0, :, :]
cflood = np.ma.masked_less_equal(conc, 0.2)
pmv = flopy.plot.PlotMapView(ax=ax, model=mf)
pmv.plot_grid(color=".5", alpha=0.2)
cs = pmv.plot_array(cflood[0], alpha=0.2, vmin=0, vmax=3)
cs = pmv.contour_array(conc[0], colors="k", levels=levels)
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("HMOC")
ax = fig.add_subplot(1, 2, 2, aspect="equal")
mf, mt, conc, cvt, mvt = p09("p09", -1, 1)
cvt["time"] / 365.0 / 86400.0
y = cvt["(1, 11, 7)"]
conc = conc[:, 0, :, :]
cflood = np.ma.masked_less_equal(conc, 0.2)
pmv = flopy.plot.PlotMapView(ax=ax, model=mf)
pmv.plot_grid(color=".5", alpha=0.2)
cs = pmv.plot_array(cflood[0], alpha=0.2, vmin=0, vmax=3)
cs = pmv.contour_array(conc[0], colors="k", levels=levels)
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("ULTIMATE")
[28]:
Text(0.5, 1.0, 'ULTIMATE')
[29]:

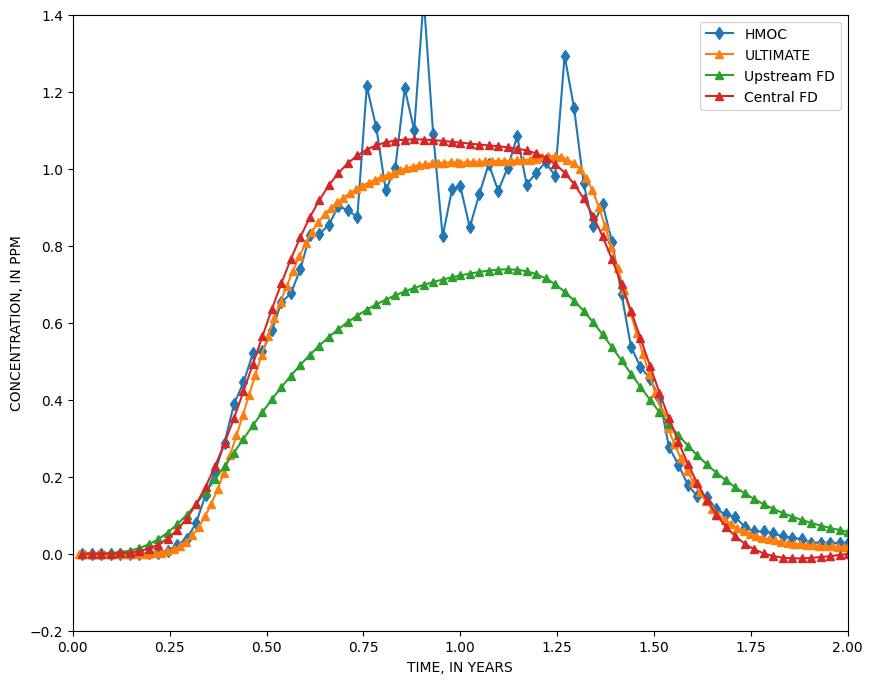

fig = plt.figure(figsize=(10, 8))
ax = fig.add_subplot(1, 1, 1)
mf, mt, conc, cvt, mvt = p09("p09", 3, 1)
x = cvt["time"] / 365.0 / 86400.0
y = cvt["(1, 11, 7)"]
plt.plot(x, y, label="HMOC", marker="d")
mf, mt, conc, cvt, mvt = p09("p09", -1, 1)
x = cvt["time"] / 365.0 / 86400.0
y = cvt["(1, 11, 7)"]
plt.plot(x, y, label="ULTIMATE", marker="^")
mf, mt, conc, cvt, mvt = p09("p09", 0, 1)
x = cvt["time"] / 365.0 / 86400.0
y = cvt["(1, 11, 7)"]
plt.plot(x, y, label="Upstream FD", marker="^")
mf, mt, conc, cvt, mvt = p09("p09", 0, 2)
x = cvt["time"] / 365.0 / 86400.0
y = cvt["(1, 11, 7)"]
plt.plot(x, y, label="Central FD", marker="^")
plt.xlim(0, 2)
plt.ylim(-0.2, 1.4)
plt.xlabel("TIME, IN YEARS")
plt.ylabel("CONCENTRATION, IN PPM")
plt.legend()
[29]:
<matplotlib.legend.Legend at 0x7f30402b7d60>
Example 10. Three-Dimensional Field Case Study
[30]:
def p10(dirname, mixelm, perlen=1000, isothm=1, sp2=0.0, ttsmult=1.2):
model_ws = os.path.join(workdir, dirname)
nlay = 4
nrow = 61
ncol = 40
delr = (
[2000, 1600, 800, 400, 200, 100]
+ 28 * [50]
+ [100, 200, 400, 800, 1600, 2000]
)
delc = (
[2000, 2000, 2000, 1600, 800, 400, 200, 100]
+ 45 * [50]
+ [100, 200, 400, 800, 1600, 2000, 2000, 2000]
)
delv = 25.0
top = 780.0
botm = [top - delv * k for k in range(1, nlay + 1)]
prsity = 0.3
al = 10.0
trpt = 0.2
trpv = 0.2
perlen_mf = perlen
perlen_mt = perlen
hk = [60.0, 60.0, 520.0, 520.0]
vka = 0.1
laytyp = 0
modelname_mf = dirname + "_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=top,
botm=botm,
perlen=perlen_mf,
)
ibound = np.ones((nlay, nrow, ncol), dtype=int)
# left side
ibound[:, :, 0] = -1
# right side
ibound[:, :, -1] = -1
# top
ibound[:, 0, :] = -1
# bottom
ibound[:, -1, :] = -1
f = open(os.path.join(datadir, "p10shead.dat"))
s0 = np.empty((nrow * ncol), dtype=float)
s0 = read1d(f, s0).reshape((nrow, ncol))
f.close()
strt = np.zeros((nlay, nrow, ncol), dtype=float)
for k in range(nlay):
strt[k] = s0
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, layvka=1, vka=vka, laytyp=laytyp)
welspd = [
[3 - 1, 11 - 1, 29 - 1, -19230.00],
[3 - 1, 19 - 1, 26 - 1, -19230.00],
[3 - 1, 26 - 1, 23 - 1, -19230.00],
[3 - 1, 33 - 1, 20 - 1, -19230.00],
[3 - 1, 40 - 1, 17 - 1, -19230.00],
[3 - 1, 48 - 1, 14 - 1, -19230.00],
[3 - 1, 48 - 1, 9 - 1, -15384.00],
[3 - 1, 52 - 1, 17 - 1, -17307.00],
]
wel = flopy.modflow.ModflowWel(mf, stress_period_data=welspd)
rch = flopy.modflow.ModflowRch(mf, rech=1.14e-3)
pcg = flopy.modflow.ModflowPcg(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mf.run_model(silent=True)
modelname_mt = dirname + "_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
f = open(os.path.join(datadir, "p10cinit.dat"))
c0 = np.empty((nrow * ncol), dtype=float)
c0 = read1d(f, c0).reshape((nrow, ncol))
f.close()
sconc = np.zeros((nlay, nrow, ncol), dtype=float)
sconc[1] = 0.2 * c0
sconc[2] = c0
obs = [
[3 - 1, 11 - 1, 29 - 1],
[3 - 1, 19 - 1, 26 - 1],
[3 - 1, 26 - 1, 23 - 1],
[3 - 1, 33 - 1, 20 - 1],
[3 - 1, 40 - 1, 17 - 1],
[3 - 1, 48 - 1, 14 - 1],
[3 - 1, 48 - 1, 9 - 1],
[3 - 1, 52 - 1, 17 - 1],
]
btn = flopy.mt3d.Mt3dBtn(
mt,
icbund=1,
prsity=prsity,
sconc=sconc,
timprs=[500, 750, 1000],
dt0=2.25,
ttsmult=ttsmult,
obs=obs,
)
dceps = 1.0e-5
nplane = 0
npl = 0
nph = 16
npmin = 2
npmax = 32
dchmoc = 0.01
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=1.0,
)
dsp = flopy.mt3d.Mt3dDsp(mt, al=al, trpt=trpt, trpv=trpv)
ssm = flopy.mt3d.Mt3dSsm(mt, crch=0.0)
rct = flopy.mt3d.Mt3dRct(
mt, isothm=isothm, igetsc=0, rhob=1.7, sp1=0.176, sp2=sp2
)
mxiter = 1
if isothm == 4:
mxiter = 50
gcg = flopy.mt3d.Mt3dGcg(mt, mxiter=mxiter, iter1=500)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[31]:
mf, mt, conctvd, cvttvd, mvttvd = p10("p10", -1)
mf, mt, conchmoc, cvthmoc, mvthmoc = p10("p10", 3)
mf, mt, concupfd, cvtupfd, mvtupfd = p10("p10", 0, ttsmult=1.0)
grid = mf.modelgrid
[32]:

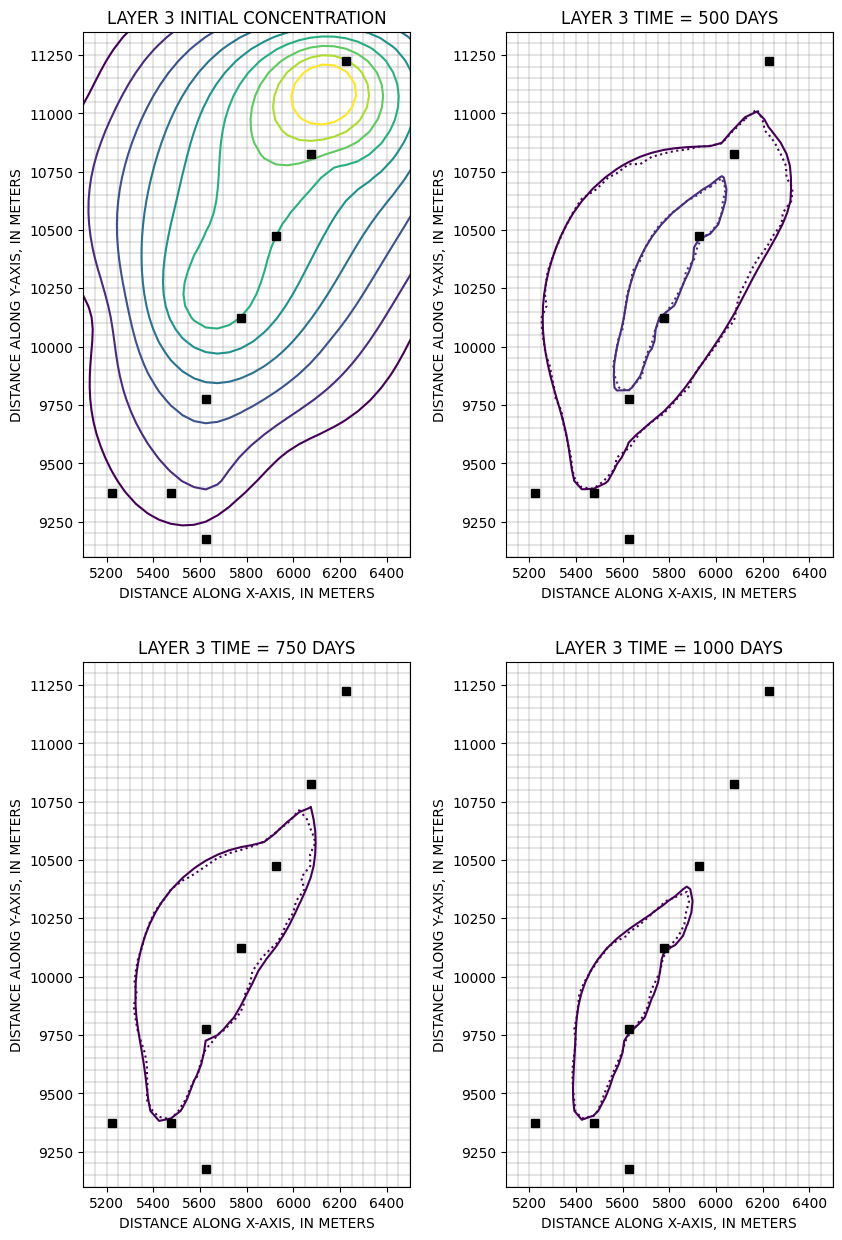

fig = plt.figure(figsize=(10, 15))
ax = fig.add_subplot(2, 2, 1, aspect="equal")
cinit = mt.btn.sconc[0].array[2]
pmv = flopy.plot.PlotMapView(model=mf)
pmv.plot_grid(color=".5", alpha=0.2)
cs = pmv.contour_array(cinit, levels=np.arange(20, 200, 20))
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("LAYER {} INITIAL CONCENTRATION".format(3))
for k, i, j, q in mf.wel.stress_period_data[0]:
plt.plot(grid.xcellcenters[i, j], grid.ycellcenters[i, j], "ks")
ax = fig.add_subplot(2, 2, 2, aspect="equal")
c = conctvd[0, 2]
chmoc = conchmoc[0, 2]
pmv = flopy.plot.PlotMapView(model=mf)
pmv.plot_grid(color=".5", alpha=0.2)
cs = pmv.contour_array(c, levels=np.arange(20, 200, 20))
cs = pmv.contour_array(chmoc, linestyles=":", levels=np.arange(20, 200, 20))
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("LAYER {} TIME = 500 DAYS".format(3))
for k, i, j, q in mf.wel.stress_period_data[0]:
plt.plot(grid.xcellcenters[i, j], grid.ycellcenters[i, j], "ks")
ax = fig.add_subplot(2, 2, 3, aspect="equal")
c = conctvd[1, 2]
chmoc = conchmoc[1, 2]
pmv = flopy.plot.PlotMapView(model=mf)
pmv.plot_grid(color=".5", alpha=0.2)
cs = pmv.contour_array(c, levels=np.arange(20, 200, 20))
cs = pmv.contour_array(chmoc, linestyles=":", levels=np.arange(20, 200, 20))
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("LAYER {} TIME = 750 DAYS".format(3))
for k, i, j, q in mf.wel.stress_period_data[0]:
plt.plot(grid.xcellcenters[i, j], grid.ycellcenters[i, j], "ks")
ax = fig.add_subplot(2, 2, 4, aspect="equal")
c = conctvd[2, 2]
chmoc = conchmoc[2, 2]
pmv = flopy.plot.PlotMapView(model=mf)
pmv.plot_grid(color=".5", alpha=0.2)
cs = pmv.contour_array(c, levels=np.arange(20, 200, 20))
cs = pmv.contour_array(chmoc, linestyles=":", levels=np.arange(20, 200, 20))
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("LAYER {} TIME = 1000 DAYS".format(3))
for k, i, j, q in mf.wel.stress_period_data[0]:
plt.plot(grid.xcellcenters[i, j], grid.ycellcenters[i, j], "ks")
# plt.tight_layout()
[33]:

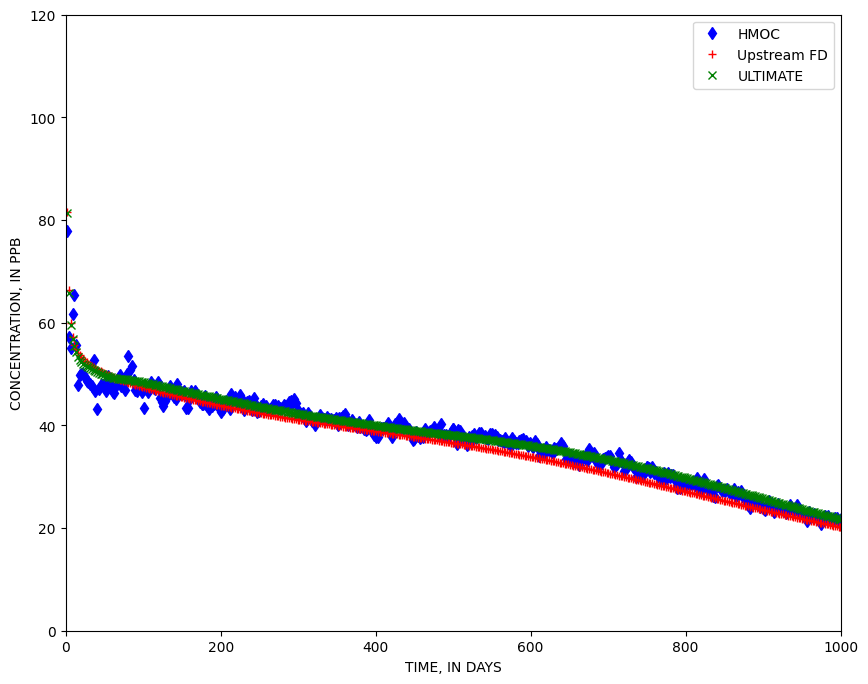

fig = plt.figure(figsize=(10, 8))
ax = fig.add_subplot(1, 1, 1)
w4 = "(3, 33, 20)"
ax.plot(cvthmoc["time"], cvthmoc[w4], "bd", label="HMOC")
ax.plot(cvtupfd["time"], cvtupfd[w4], "r+", label="Upstream FD")
ax.plot(cvttvd["time"], cvttvd[w4], "gx", label="ULTIMATE")
plt.xlim(0, 1000)
plt.ylim(0, 120)
plt.legend()
plt.xlabel("TIME, IN DAYS")
plt.ylabel("CONCENTRATION, IN PPB")
[33]:
Text(0, 0.5, 'CONCENTRATION, IN PPB')
[34]:
mf, mt, conctvd, cvttvd, mvt0 = p10("p10", 0, perlen=2000, isothm=0)
mf, mt, conctvd, cvttvd, mvt1 = p10("p10", 0, perlen=2000, isothm=1)
mf, mt, conctvd, cvttvd, mvt2 = p10("p10", 0, perlen=2000, isothm=4, sp2=0.1)
mf, mt, conctvd, cvttvd, mvt3 = p10(
"p10", 0, perlen=2000, isothm=4, sp2=1.5e-4
)
mf, mt, conctvd, cvttvd, mvt4 = p10(
"p10", 0, perlen=2000, isothm=4, sp2=1.0e-6
)
[35]:
fig = plt.figure(figsize=(10, 8))
ax = fig.add_subplot(1, 1, 1)
ax.plot(mvt0["time"], -mvt0["sinks"], "k--", label="No Sorption")
ax.plot(mvt1["time"], -mvt1["sinks"], "k-", label="Equilibrium Sorption")
ax.plot(
mvt2["time"],
-mvt2["sinks"],
"k^",
fillstyle="none",
label="Nonequilibrium (rate=0.1 /day)",
)
ax.plot(
mvt3["time"],
-mvt3["sinks"],
"ks",
fillstyle="none",
label="Nonequilibrium (rate=1.5e-4 /day)",
)
ax.plot(
mvt4["time"],
-mvt4["sinks"],
"ko",
fillstyle="none",
label="Nonequilibrium (rate=1e-6 /day)",
)
plt.xlim(0, 2000)
plt.ylim(0, 5e9)
plt.legend(loc=2)
plt.xlabel("TIME, IN DAYS")
plt.ylabel("TOTAL MASS REMOVED")
[35]:
Text(0, 0.5, 'TOTAL MASS REMOVED')
[36]:
try:
# ignore PermissionError on Windows
temp_dir.cleanup()
except:
pass
