MT3DMS Example Problems
The purpose of this notebook is to recreate the example problems that are described in the 1999 MT3DMS report.
There are 10 example problems: 1. One-Dimensional Transport in a Uniform Flow Field 2. One-Dimensional Transport with Nonlinear or Nonequilibrium Sorption 3. Two-Dimensional Transport in a Uniform Flow Field 4. Two-Dimensional Transport in a Diagonal Flow Field 5. Two-Dimensional Transport in a Radial Flow Field 6. Concentration at an Injection/Extraction Well 7. Three-Dimensional Transport in a Uniform Flow Field 8. Two-Dimensional, Vertical Transport in a Heterogeneous Aquifer 9. Two-Dimensional Application Example 10. Three-Dimensional Field Case Study
[1]:
import os
[2]:
import sys
from pprint import pformat
from tempfile import TemporaryDirectory
import matplotlib as mpl
import matplotlib.pyplot as plt
import numpy as np
import flopy
from flopy.utils.util_array import read1d
mpl.rcParams["figure.figsize"] = (8, 8)
exe_name_mf = "mf2005"
exe_name_mt = "mt3dms"
datadir = os.path.join("..", "..", "examples", "data", "mt3d_test", "mt3dms")
# temporary directory
temp_dir = TemporaryDirectory()
workdir = temp_dir.name
print(sys.version)
print(f"numpy version: {np.__version__}")
print(f"matplotlib version: {mpl.__version__}")
print(f"flopy version: {flopy.__version__}")
3.12.2 | packaged by conda-forge | (main, Feb 16 2024, 20:50:58) [GCC 12.3.0]
numpy version: 1.26.4
matplotlib version: 3.8.4
flopy version: 3.7.0.dev0
Example 1. One-Dimensional Transport in a Uniform Flow Field
This example has 4 cases: * Case 1a: Advection only * Case 1b: Advection and dispersion * Case 1c: Advection, dispersion, and sorption * Case 1d: Advection, dispersion, sorption, and decay
[3]:
def p01(dirname, al, retardation, lambda1, mixelm):
model_ws = os.path.join(workdir, dirname)
nlay = 1
nrow = 1
ncol = 101
delr = 10
delc = 1
delv = 1
Lx = (ncol - 1) * delr
v = 0.24
prsity = 0.25
q = v * prsity
perlen = 2000.0
hk = 1.0
laytyp = 0
rhob = 0.25
kd = (retardation - 1.0) * prsity / rhob
modelname_mf = f"{dirname}_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=0.0,
botm=[0 - delv],
perlen=perlen,
)
ibound = np.ones((nlay, nrow, ncol), dtype=int)
ibound[0, 0, 0] = -1
ibound[0, 0, -1] = -1
strt = np.zeros((nlay, nrow, ncol), dtype=float)
h1 = q * Lx
strt[0, 0, 0] = h1
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, laytyp=laytyp)
pcg = flopy.modflow.ModflowPcg(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
success, buff = mf.run_model(silent=True, report=True)
assert success, pformat(buff)
modelname_mt = f"{dirname}_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
c0 = 1.0
icbund = np.ones((nlay, nrow, ncol), dtype=int)
icbund[0, 0, 0] = -1
sconc = np.zeros((nlay, nrow, ncol), dtype=float)
sconc[0, 0, 0] = c0
btn = flopy.mt3d.Mt3dBtn(mt, icbund=icbund, prsity=prsity, sconc=sconc)
dceps = 1.0e-5
nplane = 1
npl = 0
nph = 4
npmin = 0
npmax = 8
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=0.5,
)
dsp = flopy.mt3d.Mt3dDsp(mt, al=al)
rct = flopy.mt3d.Mt3dRct(
mt,
isothm=1,
ireact=1,
igetsc=0,
rhob=rhob,
sp1=kd,
rc1=lambda1,
rc2=lambda1,
)
ssm = flopy.mt3d.Mt3dSsm(mt)
gcg = flopy.mt3d.Mt3dGcg(mt)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[4]:
mf, mt, conc, cvt, mvt = p01("case1a", 0, 1, 0, 1)
x = mf.modelgrid.xcellcenters.ravel()
y = conc[0, 0, 0, :]
plt.plot(x, y, label="Case 1a")
mf, mt, conc, cvt, mvt = p01("case1b", 10, 1, 0, 1)
y = conc[0, 0, 0, :]
plt.plot(x, y, label="Case 1b")
mf, mt, conc, cvt, mvt = p01("case1c", 10, 5, 0, 2)
y = conc[0, 0, 0, :]
plt.plot(x, y, label="Case 1c")
mf, mt, conc, cvt, mvt = p01("case1d", 10, 5, 0.002, 2)
y = conc[0, 0, 0, :]
plt.plot(x, y, label="Case 1d")
plt.xlim(0, 1000)
plt.ylim(0, 1.2)
plt.xlabel("DISTANCE, IN METERS")
plt.ylabel("NORMALIZED CONCENTRATION, UNITLESS")
plt.legend()
[4]:
<matplotlib.legend.Legend at 0x7ff42af55a60>

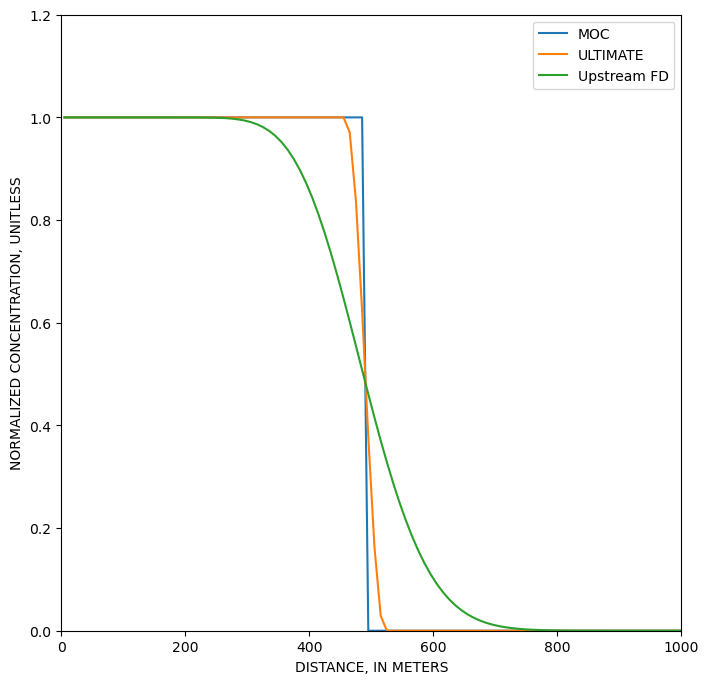

[5]:
mf, mt, conc, cvt, mvt = p01("case1e", 0, 1, 0, 1)
y = conc[0, 0, 0, :]
plt.plot(x, y, label="MOC")
mf, mt, conc, cvt, mvt = p01("case1f", 0, 1, 0, -1)
y = conc[0, 0, 0, :]
plt.plot(x, y, label="ULTIMATE")
mf, mt, conc, cvt, mvt = p01("case1g", 0, 1, 0, 0)
y = conc[0, 0, 0, :]
plt.plot(x, y, label="Upstream FD")
plt.xlim(0, 1000)
plt.ylim(0, 1.2)
plt.xlabel("DISTANCE, IN METERS")
plt.ylabel("NORMALIZED CONCENTRATION, UNITLESS")
plt.legend()
[5]:
<matplotlib.legend.Legend at 0x7ff42aedd6a0>
[6]:
mf, mt, conc, cvt, mvt = p01("case1e", 10, 1, 0, 1)
y = conc[0, 0, 0, :]
plt.plot(x, y, label="MOC")
mf, mt, conc, cvt, mvt = p01("case1f", 10, 1, 0, -1)
y = conc[0, 0, 0, :]
plt.plot(x, y, label="ULTIMATE")
mf, mt, conc, cvt, mvt = p01("case1g", 10, 1, 0, 0)
y = conc[0, 0, 0, :]
plt.plot(x, y, label="Upstream FD")
plt.xlim(0, 1000)
plt.ylim(0, 1.2)
plt.xlabel("DISTANCE, IN METERS")
plt.ylabel("NORMALIZED CONCENTRATION, UNITLESS")
plt.legend()
[6]:
<matplotlib.legend.Legend at 0x7ff422b47680>
Example 2. One-Dimensional Transport with Nonlinear or Nonequilibrium Sorption
[7]:
def p02(dirname, isothm, sp1, sp2, mixelm):
model_ws = os.path.join(workdir, dirname)
nlay = 1
nrow = 1
ncol = 101
delr = 0.16
delc = 1
delv = 1
Lx = (ncol - 1) * delr
v = 0.1
prsity = 0.37
q = v * prsity
perlen_mf = 1.0
perlen_mt = [160, 1320]
hk = 1.0
laytyp = 0
rhob = 1.587
modelname_mf = f"{dirname}_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=0.0,
botm=[0 - delv],
perlen=perlen_mf,
)
ibound = np.ones((nlay, nrow, ncol), dtype=int)
ibound[0, 0, 0] = -1
ibound[0, 0, -1] = -1
strt = np.zeros((nlay, nrow, ncol), dtype=float)
h1 = q * Lx
strt[0, 0, 0] = h1
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, laytyp=laytyp)
pcg = flopy.modflow.ModflowPcg(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
mf.run_model(silent=True)
modelname_mt = f"{dirname}_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
btn = flopy.mt3d.Mt3dBtn(
mt,
icbund=1,
prsity=prsity,
sconc=0,
nper=2,
perlen=perlen_mt,
obs=[(0, 0, 50)],
)
dceps = 1.0e-5
nplane = 1
npl = 0
nph = 4
npmin = 0
npmax = 8
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=0.5,
)
al = 1.0
dsp = flopy.mt3d.Mt3dDsp(mt, al=al)
rct = flopy.mt3d.Mt3dRct(
mt, isothm=isothm, ireact=0, igetsc=0, rhob=rhob, sp1=sp1, sp2=sp2
)
c0 = 0.05
spd = {0: [0, 0, 0, c0, 1], 1: [0, 0, 0, 0.0, 1]}
ssm = flopy.mt3d.Mt3dSsm(mt, stress_period_data=spd)
gcg = flopy.mt3d.Mt3dGcg(mt)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[8]:
mf, mt, conc, cvt, mvt = p02("freundlich", 2, 0.3, 0.7, -1)
x = cvt["time"]
y = cvt["(1, 1, 51)"] / 0.05
plt.plot(x, y, label="Freundlich")
plt.xlim(0, 1500)
plt.ylim(0, 0.5)
plt.xlabel("TIME, IN SECONDS")
plt.ylabel("NORMALIZED CONCENTRATION, UNITLESS")
plt.legend()
[8]:
<matplotlib.legend.Legend at 0x7ff42aedf680>
[9]:
mf, mt, conc, cvt, mvt = p02("langmuir", 3, 100.0, 0.003, -1)
x = cvt["time"]
y = cvt["(1, 1, 51)"] / 0.05
plt.plot(x, y, label="Langmuir")
plt.xlim(0, 500)
plt.ylim(0, 1.0)
plt.xlabel("TIME, IN SECONDS")
plt.ylabel("NORMALIZED CONCENTRATION, UNITLESS")
plt.legend()
[9]:
<matplotlib.legend.Legend at 0x7ff42ad448f0>
[10]:
for beta in [0, 2.0e-3, 1.0e-2, 20.0]:
lbl = f"beta={beta}"
mf, mt, conc, cvt, mvt = p02("nonequilibrium", 4, 0.933, beta, -1)
x = cvt["time"]
y = cvt["(1, 1, 51)"] / 0.05
plt.plot(x, y, label=lbl)
plt.xlim(0, 1500)
plt.ylim(0, 1.0)
plt.xlabel("TIME, IN SECONDS")
plt.ylabel("NORMALIZED CONCENTRATION, UNITLESS")
plt.legend()
[10]:
<matplotlib.legend.Legend at 0x7ff42ac5da90>

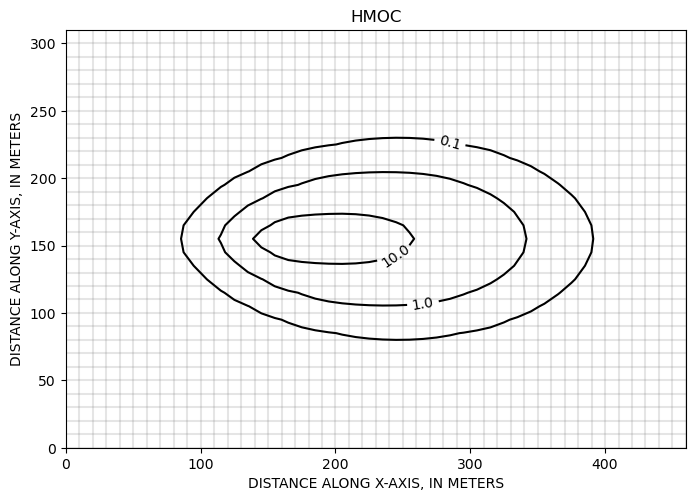

Example 3. Two-Dimensional Transport in a Uniform Flow Field
[11]:
def p03(dirname, mixelm):
model_ws = os.path.join(workdir, dirname)
nlay = 1
nrow = 31
ncol = 46
delr = 10
delc = 10
delv = 10
Lx = (ncol - 1) * delr
v = 1.0 / 3.0
prsity = 0.3
q = v * prsity
al = 10.0
trpt = 0.3
q0 = 1.0
c0 = 1000.0
perlen_mf = 365.0
perlen_mt = 365.0
hk = 1.0
laytyp = 0
modelname_mf = f"{dirname}_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=0.0,
botm=[0 - delv],
perlen=perlen_mf,
)
ibound = np.ones((nlay, nrow, ncol), dtype=int)
ibound[0, :, 0] = -1
ibound[0, :, -1] = -1
strt = np.zeros((nlay, nrow, ncol), dtype=float)
h1 = q * Lx
strt[0, :, 0] = h1
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, laytyp=laytyp)
wel = flopy.modflow.ModflowWel(mf, stress_period_data=[[0, 15, 15, q0]])
pcg = flopy.modflow.ModflowPcg(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
mf.run_model(silent=True)
modelname_mt = f"{dirname}_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
btn = flopy.mt3d.Mt3dBtn(mt, icbund=1, prsity=prsity, sconc=0)
dceps = 1.0e-5
nplane = 1
npl = 0
nph = 16
npmin = 2
npmax = 32
dchmoc = 1.0e-3
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=0.5,
)
dsp = flopy.mt3d.Mt3dDsp(mt, al=al, trpt=trpt)
spd = {0: [0, 15, 15, c0, 2]}
ssm = flopy.mt3d.Mt3dSsm(mt, stress_period_data=spd)
gcg = flopy.mt3d.Mt3dGcg(mt)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[12]:
ax = plt.subplot(1, 1, 1, aspect="equal")
mf, mt, conc, cvt, mvt = p03("p03", 3)
conc = conc[0, :, :, :]
pmv = flopy.plot.PlotMapView(model=mf)
pmv.plot_grid(color=".5", alpha=0.2)
cs = pmv.contour_array(conc, levels=[0.1, 1.0, 10.0, 50.0], colors="k")
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("HMOC")
[12]:
Text(0.5, 1.0, 'HMOC')
[13]:
ax = plt.subplot(1, 1, 1, aspect="equal")
mf, mt, conc, cvt, mvt = p03("p03", -1)
conc = conc[0, :, :, :]
pmv = flopy.plot.PlotMapView(model=mf)
pmv.plot_grid(color=".5", alpha=0.2)
cs = pmv.contour_array(conc, levels=[0.1, 1.0, 10.0, 50.0], colors="k")
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("ULTIMATE")
[13]:
Text(0.5, 1.0, 'ULTIMATE')
Example 4. Two-Dimensional Transport in a Diagonal Flow Field
[14]:
def p04(dirname, mixelm):
model_ws = os.path.join(workdir, dirname)
nlay = 1
nrow = 100
ncol = 100
delr = 10
delc = 10
delv = 1
Lx = (ncol - 1) * delr
Ly = (nrow - 1) * delc
Ls = np.sqrt(Lx**2 + Ly**2)
v = 1.0
prsity = 0.14
q = v * prsity
al = 2.0
trpt = 0.1
q0 = 0.01
c0 = 1000.0
perlen_mf = 1000.0
perlen_mt = 1000.0
hk = 1.0
laytyp = 0
modelname_mf = f"{dirname}_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=0.0,
botm=[0 - delv],
perlen=perlen_mf,
)
ibound = np.ones((nlay, nrow, ncol), dtype=int) * -1
ibound[:, 1 : nrow - 1, 1 : ncol - 1] = 1
# set strt as a linear gradient at a 45 degree angle
h1 = q * Ls
x = mf.modelgrid.xcellcenters
y = mf.modelgrid.ycellcenters
a = -1
b = -1
c = 1
d = abs(a * x + b * y + c) / np.sqrt(2)
strt = h1 - d / Ls * h1
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, laytyp=laytyp)
wel = flopy.modflow.ModflowWel(mf, stress_period_data=[[0, 79, 20, q0]])
pcg = flopy.modflow.ModflowPcg(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
mf.run_model(silent=True)
modelname_mt = f"{dirname}_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
btn = flopy.mt3d.Mt3dBtn(mt, icbund=1, prsity=prsity, sconc=0)
dceps = 1.0e-5
nplane = 1
npl = 0
nph = 16
npmin = 2
npmax = 32
dchmoc = 1.0e-3
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=0.5,
)
dsp = flopy.mt3d.Mt3dDsp(mt, al=al, trpt=trpt)
spd = {0: [0, 79, 20, c0, 2]}
ssm = flopy.mt3d.Mt3dSsm(mt, stress_period_data=spd)
gcg = flopy.mt3d.Mt3dGcg(mt)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[15]:
ax = plt.subplot(1, 1, 1, aspect="equal")
mf, mt, conc, cvt, mvt = p04("p04", 1)
grid = mf.modelgrid
conc = conc[0, :, :, :]
levels = [0.1, 1.0, 1.5, 2.0, 5.0]
pmv = flopy.plot.PlotMapView(model=mf)
cf = plt.contourf(grid.xcellcenters, grid.ycellcenters, conc[0], levels=levels)
plt.colorbar(cf, shrink=0.5)
cs = pmv.contour_array(conc, levels=levels, colors="k")
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("MOC")
[15]:
Text(0.5, 1.0, 'MOC')
[16]:
ax = plt.subplot(1, 1, 1, aspect="equal")
mf, mt, conc, cvt, mvt = p04("p04", 0)
grid = mf.modelgrid
conc = conc[0, :, :, :]
levels = [0.1, 1.0, 1.5, 2.0, 5.0]
pmv = flopy.plot.PlotMapView(model=mf)
cf = plt.contourf(grid.xcellcenters, grid.ycellcenters, conc[0], levels=levels)
plt.colorbar(cf, shrink=0.5)
cs = pmv.contour_array(conc, levels=levels, colors="k")
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("Upstream FD")
[16]:
Text(0.5, 1.0, 'Upstream FD')
[17]:

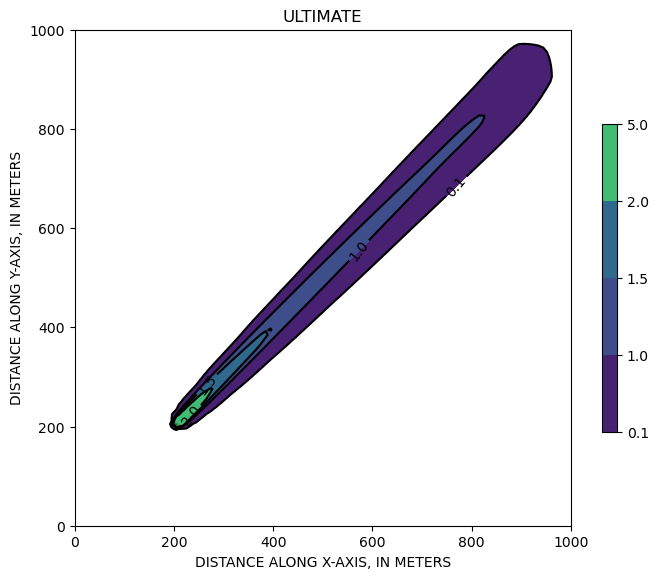

ax = plt.subplot(1, 1, 1, aspect="equal")
mf, mt, conc, cvt, mvt = p04("p04", -1)
grid = mf.modelgrid
conc = conc[0, :, :, :]
levels = [0.1, 1.0, 1.5, 2.0, 5.0]
pmv = flopy.plot.PlotMapView(model=mf)
cf = plt.contourf(grid.xcellcenters, grid.ycellcenters, conc[0], levels=levels)
plt.colorbar(cf, shrink=0.5)
cs = pmv.contour_array(conc, levels=levels, colors="k")
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("ULTIMATE")
[17]:
Text(0.5, 1.0, 'ULTIMATE')
Example 5. Two-Dimensional Transport in a Radial Flow Field
[18]:
def p05(dirname, mixelm, dt0, ttsmult):
model_ws = os.path.join(workdir, dirname)
nlay = 1
nrow = 31
ncol = 31
delr = 10
delc = 10
delv = 1
prsity = 0.30
al = 10.0
trpt = 1.0
q0 = 100.0
c0 = 1.0
perlen_mf = 27.0
perlen_mt = 27.0
hk = 1.0
laytyp = 0
modelname_mf = f"{dirname}_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=0.0,
botm=[0 - delv],
perlen=perlen_mf,
)
ibound = np.ones((nlay, nrow, ncol), dtype=int) * -1
ibound[:, 1 : nrow - 1, 1 : ncol - 1] = 1
strt = 0.0
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, laytyp=laytyp)
wel = flopy.modflow.ModflowWel(mf, stress_period_data=[[0, 15, 15, q0]])
sip = flopy.modflow.ModflowSip(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
mf.run_model(silent=True)
modelname_mt = f"{dirname}_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
btn = flopy.mt3d.Mt3dBtn(
mt, icbund=1, prsity=prsity, sconc=0, dt0=dt0, ttsmult=ttsmult
)
dceps = 1.0e-5
nplane = 1
npl = 0
nph = 16
npmin = 2
npmax = 32
dchmoc = 1.0e-3
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=0.5,
)
dsp = flopy.mt3d.Mt3dDsp(mt, al=al, trpt=trpt)
spd = {0: [0, 15, 15, c0, -1]}
ssm = flopy.mt3d.Mt3dSsm(mt, stress_period_data=spd)
gcg = flopy.mt3d.Mt3dGcg(mt)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[19]:
mf, mt, conc, cvt, mvt = p05("p05", -1, 0.3, 1.0)
grid = mf.modelgrid
conc = conc[0, 0, :, :]
x = grid.xcellcenters[15, 15:] - grid.xcellcenters[15, 15]
y = conc[15, 15:]
plt.plot(x, y, label="ULTIMATE", marker="o")
mf, mt, conc, cvt, mvt = p05("p05", 0, 0.3, 1.0)
conc = conc[0, 0, :, :]
x = grid.xcellcenters[15, 15:] - grid.xcellcenters[15, 15]
y = conc[15, 15:]
plt.plot(x, y, label="Upstream FD (TTSMULT=1.0)", marker="^")
mf, mt, conc, cvt, mvt = p05("p05", 0, 0.3, 1.5)
conc = conc[0, 0, :, :]
x = grid.xcellcenters[15, 15:] - grid.xcellcenters[15, 15]
y = conc[15, 15:]
plt.plot(x, y, label="Upstream FD (TTSMULT=1.5)", marker="^")
plt.xlabel("RADIAL DISTANCE FROM THE SOURCE, IN METERS")
plt.ylabel("NORMALIZED CONCENTRATION, UNITLESS")
plt.legend()
[19]:
<matplotlib.legend.Legend at 0x7ff420669400>
[20]:
ax = plt.subplot(1, 1, 1, aspect="equal")
mf, mt, conc, cvt, mvt = p05("p05", -1, 0.3, 1.0)
pmv = flopy.plot.PlotMapView(model=mf)
pmv.plot_grid(color=".5", alpha=0.2)
pmv.plot_ibound()
cs = pmv.contour_array(conc[0])
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("ULTIMATE")
[20]:
Text(0.5, 1.0, 'ULTIMATE')
Example 6. Concentration at an Injection/Extraction Well
[21]:
def p06(dirname, mixelm, dt0):
model_ws = os.path.join(workdir, dirname)
nlay = 1
nrow = 31
ncol = 31
delr = 900
delc = 900
delv = 20
prsity = 0.30
al = 100.0
trpt = 1.0
q0 = 86400.0
c0 = 100.0
perlen_mf = [912.5, 2737.5]
perlen_mt = perlen_mf
hk = 0.005 * 86400
laytyp = 0
modelname_mf = f"{dirname}_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=0.0,
botm=[0 - delv],
nper=2,
perlen=perlen_mf,
)
ibound = np.ones((nlay, nrow, ncol), dtype=int) * -1
ibound[:, 1 : nrow - 1, 1 : ncol - 1] = 1
strt = 0.0
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, laytyp=laytyp)
welspd = {0: [[0, 15, 15, q0]], 1: [[0, 15, 15, -q0]]}
wel = flopy.modflow.ModflowWel(mf, stress_period_data=welspd)
sip = flopy.modflow.ModflowSip(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
mf.run_model(silent=True)
modelname_mt = f"{dirname}_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
btn = flopy.mt3d.Mt3dBtn(
mt,
icbund=1,
prsity=prsity,
sconc=0,
nper=2,
perlen=perlen_mt,
dt0=dt0,
obs=[(0, 15, 15)],
)
dceps = 1.0e-5
nplane = 1
npl = 16
nph = 16
npmin = 4
npmax = 32
dchmoc = 1.0e-3
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=0.5,
)
dsp = flopy.mt3d.Mt3dDsp(mt, al=al, trpt=trpt)
spd = {0: [0, 15, 15, c0, 2], 1: [0, 15, 15, 0.0, 2]}
ssm = flopy.mt3d.Mt3dSsm(mt, stress_period_data=spd)
gcg = flopy.mt3d.Mt3dGcg(mt)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[22]:
fig = plt.figure(figsize=(10, 8))
ax = fig.add_subplot(1, 1, 1)
mf, mt, conc, cvt, mvt = p06("p06", 1, 56.25)
x = cvt["time"] / 365.0
y = cvt["(1, 16, 16)"]
ax.plot(x, y, label="MOC", marker="^")
mf, mt, conc, cvt, mvt = p06("p06", -1, 56.25)
x = cvt["time"] / 365.0
y = cvt["(1, 16, 16)"]
ax.plot(x, y, label="ULTIMATE", marker="s")
mf, mt, conc, cvt, mvt = p06("p06", 0, 56.25)
x = cvt["time"] / 365.0
y = cvt["(1, 16, 16)"]
ax.plot(x, y, label="Upstream FD", marker="x")
plt.xlim(0, 10)
plt.ylim(0, 100.0)
plt.xlabel("TIME, IN YEARS")
plt.ylabel("NORMALIZED CONCENTRATION, IN PERCENT")
plt.legend()
[22]:
<matplotlib.legend.Legend at 0x7ff4205d92b0>
Example 7. Three-Dimensional Transport in a Uniform Flow Field
[23]:
def p07(dirname, mixelm):
model_ws = os.path.join(workdir, dirname)
nlay = 8
nrow = 15
ncol = 21
delr = 10
delc = 10
delv = 10
Lx = (ncol - 1) * delr
v = 1.0 / 3.0
prsity = 0.2
q = v * prsity
al = 10.0
trpt = 0.3
trpv = 0.3
q0 = 0.5
c0 = 100.0
perlen_mf = 100.0
perlen_mt = 100.0
hk = 0.5
laytyp = 0
modelname_mf = f"{dirname}_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=0.0,
botm=[-delv * k for k in range(1, nlay + 1)],
perlen=perlen_mf,
)
ibound = np.ones((nlay, nrow, ncol), dtype=int)
ibound[:, :, 0] = -1
ibound[:, :, -1] = -1
strt = np.zeros((nlay, nrow, ncol), dtype=float)
h1 = q * Lx
strt[:, :, 0] = h1
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, laytyp=laytyp)
wel = flopy.modflow.ModflowWel(mf, stress_period_data=[[6, 7, 2, q0]])
pcg = flopy.modflow.ModflowPcg(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
mf.run_model(silent=True)
modelname_mt = f"{dirname}_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
btn = flopy.mt3d.Mt3dBtn(mt, icbund=1, prsity=prsity, sconc=0)
dceps = 1.0e-5
nplane = 1
npl = 0
nph = 16
npmin = 2
npmax = 32
dchmoc = 1.0e-3
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=0.5,
)
dsp = flopy.mt3d.Mt3dDsp(mt, al=al, trpt=trpt, trpv=trpv)
spd = {0: [6, 7, 2, c0, 2]}
ssm = flopy.mt3d.Mt3dSsm(mt, stress_period_data=spd)
gcg = flopy.mt3d.Mt3dGcg(mt)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[24]:
fig = plt.figure(figsize=(10, 20))
mf, mt, conc, cvt, mvt = p07("p07", -1)
conc = conc[0]
ax = fig.add_subplot(3, 1, 1, aspect="equal")
ilay = 4
pmv = flopy.plot.PlotMapView(ax=ax, model=mf, layer=ilay)
pmv.plot_grid(color=".5", alpha=0.2)
pmv.plot_ibound()
cs = pmv.contour_array(conc, levels=[0.01, 0.05, 0.15, 0.50], colors="k")
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title(f"LAYER {ilay + 1}")
ax = fig.add_subplot(3, 1, 2, aspect="equal")
ilay = 5
pmv = flopy.plot.PlotMapView(ax=ax, model=mf, layer=ilay)
pmv.plot_grid(color=".5", alpha=0.2)
pmv.plot_ibound()
cs = pmv.contour_array(conc, levels=[0.01, 0.05, 0.15, 0.50], colors="k")
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title(f"LAYER {ilay + 1}")
ax = fig.add_subplot(3, 1, 3, aspect="equal")
ilay = 6
pmv = flopy.plot.PlotMapView(ax=ax, model=mf, layer=ilay)
pmv.plot_grid(color=".5", alpha=0.2)
pmv.plot_ibound()
cs = pmv.contour_array(conc, levels=[0.01, 0.05, 0.15, 0.50], colors="k")
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title(f"LAYER {ilay + 1}")
plt.plot(grid.xcellcenters[7, 2], grid.ycellcenters[7, 2], "ko")
plt.tight_layout()
Example 8. Two-Dimensional, Vertical Transport in a Heterogeneous Aquifer
[25]:
def p08(dirname, mixelm):
model_ws = os.path.join(workdir, dirname)
nlay = 27
nrow = 1
ncol = 50
delr = 5
delc = 1
delv = 0.25
prsity = 0.35
al = 0.5
trpt = 0.01
trpv = 0.01
dmcoef = 1.34e-5 / 100 / 100 * 86400
rech = 0.1 / 365 # m/d
perlen_mf = 1
perlen_mt = [5 * 365, 15 * 365]
k1 = 5e-4 / 100.0 * 86400 # m/d
k2 = 1e-2 / 100.0 * 86400 # m/d
hk = k1 * np.ones((nlay, nrow, ncol), dtype=float)
hk[11:19, :, 0:24] = k2
hk[11:19, :, 36:] = k2
laytyp = 6 * [1] + 21 * [0]
modelname_mf = f"{dirname}_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=6.75,
botm=[6.75 - delv * k for k in range(1, nlay + 1)],
perlen=perlen_mf,
)
f = open(os.path.join(datadir, "p08shead.dat"))
strt = np.empty((nlay * ncol), dtype=float)
strt = read1d(f, strt).reshape((nlay, nrow, ncol))
f.close()
ibound = np.ones((nlay, nrow, ncol), dtype=int)
ibound[5:, :, -1] = -1
ibound[strt < 0] = 0
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, vka=hk, laytyp=laytyp)
rch = flopy.modflow.ModflowRch(mf, rech=rech)
pcg = flopy.modflow.ModflowPcg(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
mf.run_model(silent=True)
modelname_mt = f"{dirname}_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
btn = flopy.mt3d.Mt3dBtn(
mt,
icbund=1,
prsity=prsity,
sconc=0,
nper=2,
perlen=perlen_mt,
timprs=[8 * 365, 12 * 365, 20 * 365],
)
percel = 1.0
itrack = 3
wd = 0.5
dceps = 1.0e-5
nplane = 0
npl = 0
nph = 10
npmin = 2
npmax = 20
dchmoc = 1.0e-3
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=percel,
itrack=itrack,
wd=wd,
)
dsp = flopy.mt3d.Mt3dDsp(mt, al=al, trpt=trpt, trpv=trpv, dmcoef=dmcoef)
crch1 = np.zeros((nrow, ncol), dtype=float)
crch1[0, 9:18] = 1.0
cnc0 = [(0, 0, j, 1, -1) for j in range(8, 16)]
cnc1 = [(0, 0, j, 0.0, -1) for j in range(8, 16)]
ssmspd = {0: cnc0, 1: cnc1}
ssm = flopy.mt3d.Mt3dSsm(mt, stress_period_data=ssmspd)
gcg = flopy.mt3d.Mt3dGcg(mt)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[26]:
fig = plt.figure(figsize=(10, 15))
mf, mt, conc, cvt, mvt = p08("p08", 3)
hk = mf.lpf.hk.array
ax = fig.add_subplot(3, 1, 1)
mx = flopy.plot.PlotCrossSection(ax=ax, model=mf, line={"row": 0})
mx.plot_array(hk, masked_values=[hk[0, 0, 0]], alpha=0.2)
mx.plot_ibound()
mx.plot_grid(color="0.5", alpha=0.2)
cs = mx.contour_array(
conc[1], levels=np.arange(0.05, 0.55, 0.05), masked_values=[1.0e30]
)
ax.set_title("TIME = 8 YEARS")
ax = fig.add_subplot(3, 1, 2)
mx = flopy.plot.PlotCrossSection(ax=ax, model=mf, line={"row": 0})
mx.plot_array(hk, masked_values=[hk[0, 0, 0]], alpha=0.2)
mx.plot_ibound()
mx.plot_grid(color="0.5", alpha=0.2)
cs = mx.contour_array(
conc[2], levels=np.arange(0.05, 0.55, 0.05), masked_values=[1.0e30]
)
ax.set_title("TIME = 12 YEARS")
ax = fig.add_subplot(3, 1, 3)
mx = flopy.plot.PlotCrossSection(ax=ax, model=mf, line={"row": 0})
mx.plot_array(hk, masked_values=[hk[0, 0, 0]], alpha=0.2)
mx.plot_ibound()
mx.plot_grid(color="0.5", alpha=0.2)
cs = mx.contour_array(
conc[3], levels=[0.05, 0.1, 0.15, 0.19], masked_values=[1.0e30]
)
ax.set_title("TIME = 20 YEARS")
found 'rch' in modflow model, resetting crch to 0.0
[26]:
Text(0.5, 1.0, 'TIME = 20 YEARS')
Example 9. Two-Dimensional Application Example
[27]:
def p09(dirname, mixelm, nadvfd):
model_ws = os.path.join(workdir, dirname)
nlay = 1
nrow = 18
ncol = 14
delr = 100
delc = 100
delv = 10
prsity = 0.3
al = 20.0
trpt = 0.2
perlen_mf = 1.0
perlen_mt = [365.0 * 86400, 365.0 * 86400]
laytyp = 0
k1 = 1.474e-4
k2 = 1.474e-7
hk = k1 * np.ones((nlay, nrow, ncol), dtype=float)
hk[:, 5:8, 1:8] = k2
modelname_mf = f"{dirname}_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=0.0,
botm=[0 - delv],
perlen=perlen_mf,
)
ibound = np.ones((nlay, nrow, ncol), dtype=int)
ibound[0, 0, :] = -1
ibound[0, -1, :] = -1
strt = np.zeros((nlay, nrow, ncol), dtype=float)
strt[0, 0, :] = 250.0
xc = mf.modelgrid.xcellcenters
for j in range(ncol):
strt[0, -1, j] = 20.0 + (xc[0, j] - xc[0, 0]) * 2.5 / 100
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, laytyp=laytyp)
welspd = [[0, 3, 6, 0.001], [0, 10, 6, -0.0189]]
wel = flopy.modflow.ModflowWel(mf, stress_period_data=welspd)
pcg = flopy.modflow.ModflowPcg(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
mf.run_model(silent=True)
modelname_mt = f"{dirname}_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
btn = flopy.mt3d.Mt3dBtn(
mt,
icbund=1,
prsity=prsity,
sconc=0,
nper=2,
perlen=perlen_mt,
obs=[[0, 10, 6]],
)
percel = 1.0
itrack = 2
dceps = 1.0e-5
nplane = 0
npl = 0
nph = 16
npmin = 0
npmax = 32
dchmoc = 1.0e-3
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=percel,
itrack=itrack,
nadvfd=nadvfd,
)
dsp = flopy.mt3d.Mt3dDsp(mt, al=al, trpt=trpt)
spd = {
0: [[0, 3, 6, 57.87, 2], [0, 10, 6, 0.0, 2]],
1: [[0, 3, 6, 0.0, 2], [0, 10, 6, 0.0, 2]],
}
ssm = flopy.mt3d.Mt3dSsm(mt, stress_period_data=spd)
gcg = flopy.mt3d.Mt3dGcg(mt)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[28]:
fig = plt.figure(figsize=(15, 10))
levels = np.arange(0.2, 10, 0.2)
ax = fig.add_subplot(1, 2, 1, aspect="equal")
mf, mt, conc, cvt, mvt = p09("p09", 3, 1)
cvt["time"] / 365.0 / 86400.0
y = cvt["(1, 11, 7)"]
conc = conc[:, 0, :, :]
cflood = np.ma.masked_less_equal(conc, 0.2)
pmv = flopy.plot.PlotMapView(ax=ax, model=mf)
pmv.plot_grid(color=".5", alpha=0.2)
cs = pmv.plot_array(cflood[0], alpha=0.2, vmin=0, vmax=3)
cs = pmv.contour_array(conc[0], colors="k", levels=levels)
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("HMOC")
ax = fig.add_subplot(1, 2, 2, aspect="equal")
mf, mt, conc, cvt, mvt = p09("p09", -1, 1)
cvt["time"] / 365.0 / 86400.0
y = cvt["(1, 11, 7)"]
conc = conc[:, 0, :, :]
cflood = np.ma.masked_less_equal(conc, 0.2)
pmv = flopy.plot.PlotMapView(ax=ax, model=mf)
pmv.plot_grid(color=".5", alpha=0.2)
cs = pmv.plot_array(cflood[0], alpha=0.2, vmin=0, vmax=3)
cs = pmv.contour_array(conc[0], colors="k", levels=levels)
plt.clabel(cs)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title("ULTIMATE")
[28]:
Text(0.5, 1.0, 'ULTIMATE')
[29]:

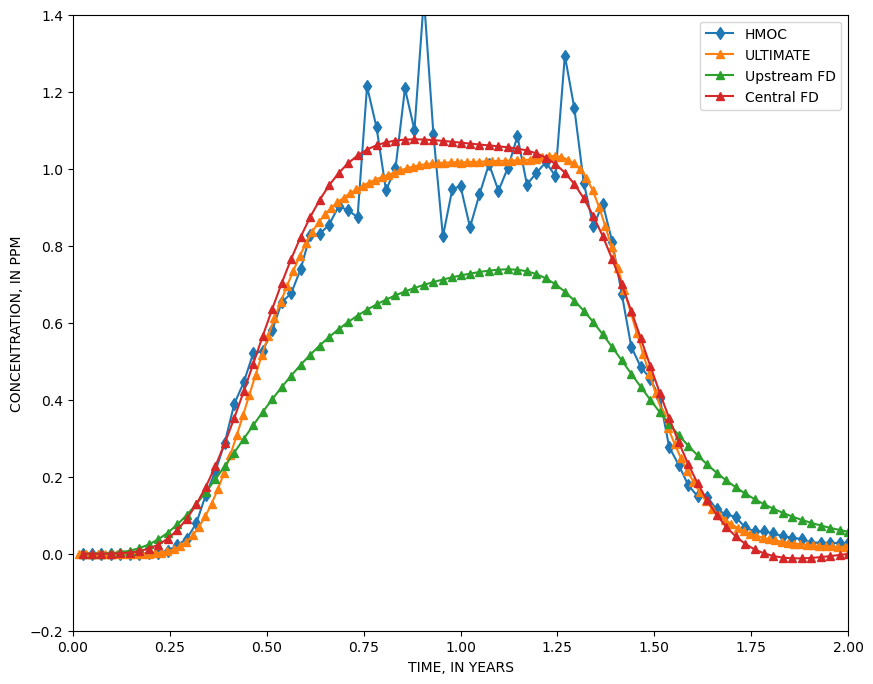

fig = plt.figure(figsize=(10, 8))
ax = fig.add_subplot(1, 1, 1)
mf, mt, conc, cvt, mvt = p09("p09", 3, 1)
x = cvt["time"] / 365.0 / 86400.0
y = cvt["(1, 11, 7)"]
plt.plot(x, y, label="HMOC", marker="d")
mf, mt, conc, cvt, mvt = p09("p09", -1, 1)
x = cvt["time"] / 365.0 / 86400.0
y = cvt["(1, 11, 7)"]
plt.plot(x, y, label="ULTIMATE", marker="^")
mf, mt, conc, cvt, mvt = p09("p09", 0, 1)
x = cvt["time"] / 365.0 / 86400.0
y = cvt["(1, 11, 7)"]
plt.plot(x, y, label="Upstream FD", marker="^")
mf, mt, conc, cvt, mvt = p09("p09", 0, 2)
x = cvt["time"] / 365.0 / 86400.0
y = cvt["(1, 11, 7)"]
plt.plot(x, y, label="Central FD", marker="^")
plt.xlim(0, 2)
plt.ylim(-0.2, 1.4)
plt.xlabel("TIME, IN YEARS")
plt.ylabel("CONCENTRATION, IN PPM")
plt.legend()
[29]:
<matplotlib.legend.Legend at 0x7ff41abc5c10>
Example 10. Three-Dimensional Field Case Study
[30]:
def p10(dirname, mixelm, perlen=1000, isothm=1, sp2=0.0, ttsmult=1.2):
model_ws = os.path.join(workdir, dirname)
nlay = 4
nrow = 61
ncol = 40
delr = (
[2000, 1600, 800, 400, 200, 100]
+ 28 * [50]
+ [100, 200, 400, 800, 1600, 2000]
)
delc = (
[2000, 2000, 2000, 1600, 800, 400, 200, 100]
+ 45 * [50]
+ [100, 200, 400, 800, 1600, 2000, 2000, 2000]
)
delv = 25.0
top = 780.0
botm = [top - delv * k for k in range(1, nlay + 1)]
prsity = 0.3
al = 10.0
trpt = 0.2
trpv = 0.2
perlen_mf = perlen
perlen_mt = perlen
hk = [60.0, 60.0, 520.0, 520.0]
vka = 0.1
laytyp = 0
modelname_mf = f"{dirname}_mf"
mf = flopy.modflow.Modflow(
modelname=modelname_mf, model_ws=model_ws, exe_name=exe_name_mf
)
dis = flopy.modflow.ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=top,
botm=botm,
perlen=perlen_mf,
)
ibound = np.ones((nlay, nrow, ncol), dtype=int)
# left side
ibound[:, :, 0] = -1
# right side
ibound[:, :, -1] = -1
# top
ibound[:, 0, :] = -1
# bottom
ibound[:, -1, :] = -1
f = open(os.path.join(datadir, "p10shead.dat"))
s0 = np.empty((nrow * ncol), dtype=float)
s0 = read1d(f, s0).reshape((nrow, ncol))
f.close()
strt = np.zeros((nlay, nrow, ncol), dtype=float)
for k in range(nlay):
strt[k] = s0
bas = flopy.modflow.ModflowBas(mf, ibound=ibound, strt=strt)
lpf = flopy.modflow.ModflowLpf(mf, hk=hk, layvka=1, vka=vka, laytyp=laytyp)
welspd = [
[3 - 1, 11 - 1, 29 - 1, -19230.00],
[3 - 1, 19 - 1, 26 - 1, -19230.00],
[3 - 1, 26 - 1, 23 - 1, -19230.00],
[3 - 1, 33 - 1, 20 - 1, -19230.00],
[3 - 1, 40 - 1, 17 - 1, -19230.00],
[3 - 1, 48 - 1, 14 - 1, -19230.00],
[3 - 1, 48 - 1, 9 - 1, -15384.00],
[3 - 1, 52 - 1, 17 - 1, -17307.00],
]
wel = flopy.modflow.ModflowWel(mf, stress_period_data=welspd)
rch = flopy.modflow.ModflowRch(mf, rech=1.14e-3)
pcg = flopy.modflow.ModflowPcg(mf)
lmt = flopy.modflow.ModflowLmt(mf)
mf.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mf.run_model(silent=True)
modelname_mt = f"{dirname}_mt"
mt = flopy.mt3d.Mt3dms(
modelname=modelname_mt,
model_ws=model_ws,
exe_name=exe_name_mt,
modflowmodel=mf,
)
f = open(os.path.join(datadir, "p10cinit.dat"))
c0 = np.empty((nrow * ncol), dtype=float)
c0 = read1d(f, c0).reshape((nrow, ncol))
f.close()
sconc = np.zeros((nlay, nrow, ncol), dtype=float)
sconc[1] = 0.2 * c0
sconc[2] = c0
obs = [
[3 - 1, 11 - 1, 29 - 1],
[3 - 1, 19 - 1, 26 - 1],
[3 - 1, 26 - 1, 23 - 1],
[3 - 1, 33 - 1, 20 - 1],
[3 - 1, 40 - 1, 17 - 1],
[3 - 1, 48 - 1, 14 - 1],
[3 - 1, 48 - 1, 9 - 1],
[3 - 1, 52 - 1, 17 - 1],
]
btn = flopy.mt3d.Mt3dBtn(
mt,
icbund=1,
prsity=prsity,
sconc=sconc,
timprs=[500, 750, 1000],
dt0=2.25,
ttsmult=ttsmult,
obs=obs,
)
dceps = 1.0e-5
nplane = 0
npl = 0
nph = 16
npmin = 2
npmax = 32
dchmoc = 0.01
nlsink = nplane
npsink = nph
adv = flopy.mt3d.Mt3dAdv(
mt,
mixelm=mixelm,
dceps=dceps,
nplane=nplane,
npl=npl,
nph=nph,
npmin=npmin,
npmax=npmax,
nlsink=nlsink,
npsink=npsink,
percel=1.0,
)
dsp = flopy.mt3d.Mt3dDsp(mt, al=al, trpt=trpt, trpv=trpv)
ssm = flopy.mt3d.Mt3dSsm(mt, crch=0.0)
rct = flopy.mt3d.Mt3dRct(
mt, isothm=isothm, igetsc=0, rhob=1.7, sp1=0.176, sp2=sp2
)
mxiter = 1
if isothm == 4:
mxiter = 50
gcg = flopy.mt3d.Mt3dGcg(mt, mxiter=mxiter, iter1=500)
mt.write_input()
fname = os.path.join(model_ws, "MT3D001.UCN")
if os.path.isfile(fname):
os.remove(fname)
mt.run_model(silent=True)
fname = os.path.join(model_ws, "MT3D001.UCN")
ucnobj = flopy.utils.UcnFile(fname)
times = ucnobj.get_times()
conc = ucnobj.get_alldata()
fname = os.path.join(model_ws, "MT3D001.OBS")
if os.path.isfile(fname):
cvt = mt.load_obs(fname)
else:
cvt = None
fname = os.path.join(model_ws, "MT3D001.MAS")
mvt = mt.load_mas(fname)
return mf, mt, conc, cvt, mvt
[31]:
mf, mt, conctvd, cvttvd, mvttvd = p10("p10", -1)
mf, mt, conchmoc, cvthmoc, mvthmoc = p10("p10", 3)
mf, mt, concupfd, cvtupfd, mvtupfd = p10("p10", 0, ttsmult=1.0)
grid = mf.modelgrid
[32]:
fig = plt.figure(figsize=(10, 15))
ax = fig.add_subplot(2, 2, 1, aspect="equal")
cinit = mt.btn.sconc[0].array[2]
pmv = flopy.plot.PlotMapView(model=mf)
pmv.plot_grid(color=".5", alpha=0.2)
cs = pmv.contour_array(cinit, levels=np.arange(20, 200, 20))
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title(f"LAYER {3} INITIAL CONCENTRATION")
for k, i, j, q in mf.wel.stress_period_data[0]:
plt.plot(grid.xcellcenters[i, j], grid.ycellcenters[i, j], "ks")
ax = fig.add_subplot(2, 2, 2, aspect="equal")
c = conctvd[0, 2]
chmoc = conchmoc[0, 2]
pmv = flopy.plot.PlotMapView(model=mf)
pmv.plot_grid(color=".5", alpha=0.2)
cs = pmv.contour_array(c, levels=np.arange(20, 200, 20))
cs = pmv.contour_array(chmoc, linestyles=":", levels=np.arange(20, 200, 20))
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title(f"LAYER {3} TIME = 500 DAYS")
for k, i, j, q in mf.wel.stress_period_data[0]:
plt.plot(grid.xcellcenters[i, j], grid.ycellcenters[i, j], "ks")
ax = fig.add_subplot(2, 2, 3, aspect="equal")
c = conctvd[1, 2]
chmoc = conchmoc[1, 2]
pmv = flopy.plot.PlotMapView(model=mf)
pmv.plot_grid(color=".5", alpha=0.2)
cs = pmv.contour_array(c, levels=np.arange(20, 200, 20))
cs = pmv.contour_array(chmoc, linestyles=":", levels=np.arange(20, 200, 20))
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title(f"LAYER {3} TIME = 750 DAYS")
for k, i, j, q in mf.wel.stress_period_data[0]:
plt.plot(grid.xcellcenters[i, j], grid.ycellcenters[i, j], "ks")
ax = fig.add_subplot(2, 2, 4, aspect="equal")
c = conctvd[2, 2]
chmoc = conchmoc[2, 2]
pmv = flopy.plot.PlotMapView(model=mf)
pmv.plot_grid(color=".5", alpha=0.2)
cs = pmv.contour_array(c, levels=np.arange(20, 200, 20))
cs = pmv.contour_array(chmoc, linestyles=":", levels=np.arange(20, 200, 20))
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("DISTANCE ALONG X-AXIS, IN METERS")
plt.ylabel("DISTANCE ALONG Y-AXIS, IN METERS")
plt.title(f"LAYER {3} TIME = 1000 DAYS")
for k, i, j, q in mf.wel.stress_period_data[0]:
plt.plot(grid.xcellcenters[i, j], grid.ycellcenters[i, j], "ks")
# plt.tight_layout()
[33]:
fig = plt.figure(figsize=(10, 8))
ax = fig.add_subplot(1, 1, 1)
w4 = "(3, 33, 20)"
ax.plot(cvthmoc["time"], cvthmoc[w4], "bd", label="HMOC")
ax.plot(cvtupfd["time"], cvtupfd[w4], "r+", label="Upstream FD")
ax.plot(cvttvd["time"], cvttvd[w4], "gx", label="ULTIMATE")
plt.xlim(0, 1000)
plt.ylim(0, 120)
plt.legend()
plt.xlabel("TIME, IN DAYS")
plt.ylabel("CONCENTRATION, IN PPB")
[33]:
Text(0, 0.5, 'CONCENTRATION, IN PPB')
[34]:
mf, mt, conctvd, cvttvd, mvt0 = p10("p10", 0, perlen=2000, isothm=0)
mf, mt, conctvd, cvttvd, mvt1 = p10("p10", 0, perlen=2000, isothm=1)
mf, mt, conctvd, cvttvd, mvt2 = p10("p10", 0, perlen=2000, isothm=4, sp2=0.1)
mf, mt, conctvd, cvttvd, mvt3 = p10(
"p10", 0, perlen=2000, isothm=4, sp2=1.5e-4
)
mf, mt, conctvd, cvttvd, mvt4 = p10(
"p10", 0, perlen=2000, isothm=4, sp2=1.0e-6
)
[35]:
fig = plt.figure(figsize=(10, 8))
ax = fig.add_subplot(1, 1, 1)
ax.plot(mvt0["time"], -mvt0["sinks"], "k--", label="No Sorption")
ax.plot(mvt1["time"], -mvt1["sinks"], "k-", label="Equilibrium Sorption")
ax.plot(
mvt2["time"],
-mvt2["sinks"],
"k^",
fillstyle="none",
label="Nonequilibrium (rate=0.1 /day)",
)
ax.plot(
mvt3["time"],
-mvt3["sinks"],
"ks",
fillstyle="none",
label="Nonequilibrium (rate=1.5e-4 /day)",
)
ax.plot(
mvt4["time"],
-mvt4["sinks"],
"ko",
fillstyle="none",
label="Nonequilibrium (rate=1e-6 /day)",
)
plt.xlim(0, 2000)
plt.ylim(0, 5e9)
plt.legend(loc=2)
plt.xlabel("TIME, IN DAYS")
plt.ylabel("TOTAL MASS REMOVED")
[35]:
Text(0, 0.5, 'TOTAL MASS REMOVED')
[36]:
try:
# ignore PermissionError on Windows
temp_dir.cleanup()
except:
pass
