Dual Domain Transport in a One-Dimensional, Uniform Flow Field
Panday, S., 2024; USG-Transport Version 2.4.0: Transport and Other Enhancements to MODFLOW-USG, GSI Environmental, July 2024 http://www.gsi-net.com/en/software/free-software/USG-Transport.html
This test problem discusses one dimensional dual domain transport in a uniform steady-state flow-field. A 150 foot long horizontal soil column is discretized into 1 layer, 1 row, and 300 columns using dx=0.5feet, dy=1foot, and dz=1foot. The flow-field is setup using a hydraulic conductivity of 1000 ft/day and constant head boundaries of 10 feet and 9 feet at either end of the domain. The simulation considers a dual porosity system with a mobile domain fraction of 0.4. Transport related parameters for the mobile domain include a longitudinal dispersivity of 0.5 feet, zero molecular diffusion, a porosity value of 0.35, a soil bulk density value of 1.6 kg/L, and an adsorption coefficient (kd) value of 0.1 L/kg. Transport parameters for the immobile domain include a porosity value of 0.2, a soil bulk density value of 1.6 kg/L, an adsorption coefficient (kd) value of 0.1 L/kg, and a mass transfer rate of 0.1 day-1. The concentration of water in both mobile and immobile domains is zero at the start of the simulation.

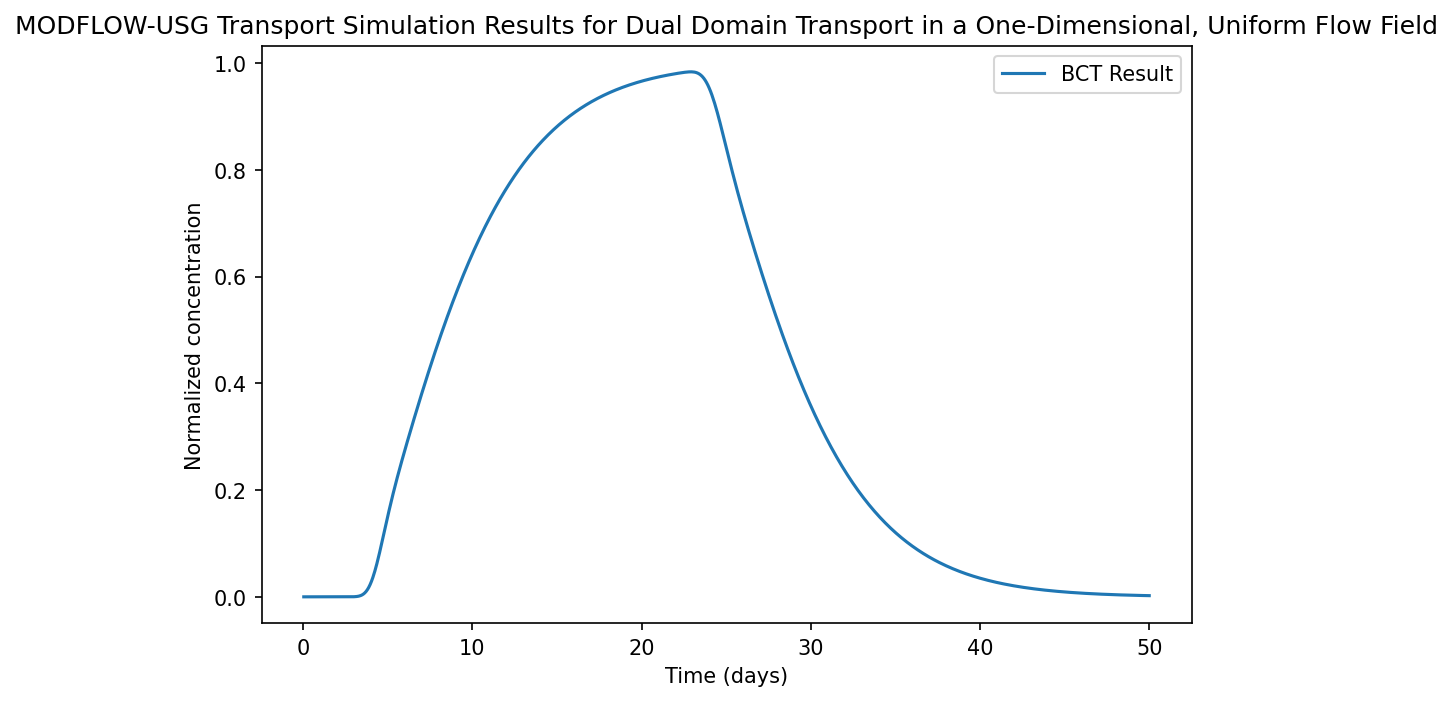

A transport simulation was performed for this setup with a prescribed species concentration of 1mg/L at the upstream end of the soil column within the mobile domain, for a period of 20 days. Subsequently, the concentration of inflow water was made to zero for a period of 30 days to evaluate flushing of the system. Each stress period contains 100 time steps of uniform size 0.04 day step size for the first stress period when the component species front is advancing, and a 0.08 day step size for the second stress period when the soil column is being flushed. Simulation results were compared with results from a MT3D simulation of the same setup, using the TVD solution scheme. Note that the mobile porosity in MT3D is equal to the porosity of the mobile domain (0.35) times the mobile domain fraction (0.4), and that the immobile porosity in MT3D is equal to the porosity of the immobile domain (0.2) times the immobile domain fraction (which is one minus the mobile domain fraction 0.6). Figure Ex 7 shows the concentration versus time plot in the mobile domain, at the outlet of the domain. The MT3D and BCT Process simulation results are almost the same.
[1]:
import matplotlib.pyplot as plt
import numpy as np
import flopy
from flopy.mfusg import (
MfUsg,
MfUsgBas,
MfUsgBcf,
MfUsgBct,
MfUsgDpt,
MfUsgOc,
MfUsgPcb,
MfUsgSms,
)
from flopy.modflow import ModflowChd, ModflowDis
from flopy.utils import HeadFile
[2]:
model_ws = "Ex4_DualDomain"
mf = MfUsg(
version="mfusg",
structured=True,
model_ws=model_ws,
modelname="Ex4_DualDomain",
exe_name="mfusg_gsi",
)
[3]:
nlay = 1
nrow = 1
ncol = 300
delr = 0.5
delc = 1.0
top = 1.0
botm = 0
nper = 2
perlen = [20.0, 30.0]
nstp = [100, 100]
tsmult = [1.5, 1.5]
lenuni = 0
xcol = [i * delc for i in range(ncol)]
dis = ModflowDis(
mf,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=top,
botm=botm,
nper=nper,
perlen=perlen,
nstp=nstp,
tsmult=tsmult,
lenuni=lenuni,
)
[4]:
ibound = np.ones((nlay, nrow, ncol))
ibound[:, :, 0] = -1
ibound[:, :, -1] = -1
strt = np.full((nlay, nrow, ncol), 9.7)
strt[:, :, 0] = 10.0
strt[:, :, -1] = 9.0
bas = MfUsgBas(mf, ibound=ibound, strt=strt)
[5]:
tran = 1000.0
bcf = MfUsgBcf(mf, ipakcb=50, laycon=0, hdry=-999.9, wetfct=0.0, iwetit=0, tran=tran)
[6]:
sms = MfUsgSms(
mf,
options="MODERATE",
hclose=1.0e-3,
hiclose=1.0e-5,
mxiter=250,
iter1=600,
iprsms=1,
nonlinmeth=-1,
linmeth=1,
theta=0.9,
akappa=0.0001,
gamma=0.0,
amomentum=0.0,
numtrack=0,
btol=0.0,
breduc=0.0,
reslim=0.0,
iacl=2,
norder=0,
level=3,
north=5,
iredsys=1,
rrctol=0.0,
idroptol=1,
epsrn=1.0e-3,
)
[7]:
lrcsc = {0: [[0, 0, 0, 10.0, 10.0], [0, 0, 299, 9.0, 9.0]]}
chd = ModflowChd(mf, ipakcb=50, stress_period_data=lrcsc)
[8]:
prsity = 0.35
bulkd = 1.60
dl = 0.5
dt = 0.0
adsorb = 0.1
conc = 0
bct = MfUsgBct(
mf,
ipakcb=55,
itvd=20,
cinact=-999.0,
diffnc=0.0,
prsity=prsity,
dl=dl,
dt=dt,
iadsorb=1,
bulkd=bulkd,
adsorb=adsorb,
conc=conc,
)
[9]:
lrcsc = {0: [0, 0, 0, 1, 1.0], 1: [0, 0, 0, 1, 0.0]}
pcb = MfUsgPcb(mf, stress_period_data=lrcsc)
[10]:
dpt = MfUsgDpt(
mf,
ipakcb=55,
idptcon=0,
icbndimflg=0,
iadsorbim=1,
icbundim=1,
prsityim=0.2,
bulkdim=1.6,
ddtr=0.1,
adsorbim=0.1,
unitnumber=58,
)
[11]:
lrcsc = {
(0, 0): [
"DELTAT 4.0E-2",
"TMAXAT 2.0E00",
"TMINAT 1.0E-4",
"TADJAT 1.0",
"SAVE HEAD",
"SAVE BUDGET",
"SAVE CONC",
],
(1, 0): ["DELTAT 8.0E-2", "TADJAT 1.0", "SAVE HEAD", "SAVE BUDGET", "SAVE CONC"],
}
oc = MfUsgOc(
mf, atsa=1, npsteps=1, unitnumber=[14, 30, 31, 0, 0, 35], stress_period_data=lrcsc
)
[12]:
mf.write_input()
success, buff = mf.run_model()
True
FloPy is using the following executable to run the model: ../../../../../../../.local/bin/modflow/mfusg_gsi
USG-TRANSPORT
MODFLOW-USG GROUNDWATER FLOW AND TRANSPORT MODEL
Version USG-TRANSPORT VERSION 2.5.0
Using NAME file: Ex4_DualDomain.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/10/01 16:04:02
Solving: Stress period: 1 Time step: 1 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 1 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 2 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 3 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 4 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 5 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 6 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 7 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 8 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 9 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 10 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 11 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 12 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 13 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 14 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 15 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 16 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 17 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 18 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 19 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 20 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 21 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 22 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 23 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 24 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 25 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 26 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 27 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 28 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 29 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 30 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 31 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 32 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 33 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 34 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 35 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 36 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 37 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 38 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 39 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 40 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 41 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 42 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 43 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 44 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 45 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 46 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 47 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 48 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 49 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 50 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 51 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 52 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 53 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 54 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 55 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 56 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 57 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 58 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 59 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 60 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 61 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 62 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 63 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 64 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 65 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 66 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 67 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 68 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 69 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 70 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 71 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 72 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 73 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 74 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 75 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 76 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 77 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 78 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 79 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 80 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 81 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 82 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 83 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 84 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 85 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 86 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 87 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 88 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 89 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 90 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 91 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 92 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 93 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 94 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 95 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 96 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 97 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 98 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 99 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 100 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 101 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 102 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 103 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 104 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 105 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 106 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 107 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 108 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 109 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 110 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 111 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 112 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 113 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 114 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 115 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 116 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 117 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 118 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 119 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 120 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 121 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 122 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 123 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 124 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 125 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 126 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 127 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 128 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 129 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 130 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 131 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 132 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 133 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 134 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 135 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 136 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 137 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 138 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 139 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 140 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 141 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 142 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 143 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 144 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 145 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 146 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 147 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 148 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 149 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 150 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 151 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 152 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 153 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 154 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 155 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 156 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 157 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 158 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 159 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 160 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 161 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 162 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 163 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 164 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 165 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 166 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 167 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 168 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 169 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 170 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 171 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 172 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 173 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 174 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 175 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 176 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 177 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 178 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 179 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 180 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 181 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 182 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 183 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 184 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 185 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 186 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 187 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 188 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 189 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 190 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 191 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 192 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 193 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 194 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 195 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 196 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 197 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 198 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 199 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 200 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 201 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 202 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 203 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 204 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 205 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 206 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 207 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 208 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 209 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 210 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 211 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 212 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 213 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 214 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 215 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 216 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 217 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 218 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 219 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 220 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 221 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 222 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 223 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 224 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 225 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 226 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 227 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 228 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 229 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 230 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 231 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 232 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 233 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 234 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 235 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 236 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 237 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 238 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 239 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 240 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 241 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 242 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 243 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 244 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 245 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 246 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 247 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 248 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 249 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 250 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 251 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 252 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 253 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 254 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 255 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 256 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 257 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 258 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 259 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 260 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 261 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 262 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 263 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 264 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 265 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 266 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 267 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 268 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 269 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 270 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 271 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 272 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 273 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 274 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 275 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 276 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 277 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 278 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 279 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 280 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 281 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 282 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 283 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 284 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 285 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 286 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 287 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 288 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 289 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 290 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 291 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 292 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 293 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 294 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 295 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 296 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 297 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 298 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 299 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 300 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 301 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 302 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 303 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 304 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 305 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 306 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 307 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 308 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 309 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 310 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 311 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 312 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 313 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 314 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 315 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 316 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 317 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 318 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 319 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 320 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 321 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 322 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 323 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 324 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 325 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 326 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 327 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 328 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 329 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 330 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 331 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 332 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 333 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 334 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 335 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 336 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 337 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 338 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 339 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 340 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 341 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 342 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 343 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 344 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 345 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 346 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 347 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 348 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 349 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 350 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 351 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 352 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 353 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 354 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 355 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 356 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 357 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 358 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 359 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 360 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 361 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 362 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 363 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 364 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 365 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 366 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 367 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 368 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 369 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 370 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 371 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 372 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 373 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 374 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 375 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 376 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 377 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 378 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 379 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 380 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 381 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 382 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 383 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 384 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 385 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 386 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 387 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 388 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 389 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 390 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 391 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 392 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 393 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 394 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 395 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 396 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 397 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 398 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 399 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 400 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 401 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 402 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 403 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 404 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 405 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 406 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 407 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 408 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 409 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 410 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 411 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 412 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 413 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 414 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 415 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 416 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 417 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 418 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 419 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 420 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 421 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 422 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 423 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 424 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 425 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 426 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 427 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 428 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 429 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 430 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 431 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 432 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 433 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 434 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 435 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 436 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 437 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 438 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 439 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 440 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 441 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 442 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 443 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 444 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 445 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 446 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 447 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 448 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 449 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 450 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 451 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 452 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 453 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 454 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 455 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 456 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 457 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 458 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 459 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 460 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 461 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 462 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 463 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 464 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 465 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 466 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 467 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 468 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 469 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 470 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 471 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 472 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 473 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 474 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 475 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 476 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 477 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 478 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 479 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 480 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 481 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 482 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 483 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 484 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 485 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 486 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 487 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 488 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 489 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 490 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 491 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 492 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 493 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 494 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 495 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 496 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 497 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 498 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 499 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 500 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 1 Groundwater Flow Eqn.
Solving: Stress period: 2 Time step: 1 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 2 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 3 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 4 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 5 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 6 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 7 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 8 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 9 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 10 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 11 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 12 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 13 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 14 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 15 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 16 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 17 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 18 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 19 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 20 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 21 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 22 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 23 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 24 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 25 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 26 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 27 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 28 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 29 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 30 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 31 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 32 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 33 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 34 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 35 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 36 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 37 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 38 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 39 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 40 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 41 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 42 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 43 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 44 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 45 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 46 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 47 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 48 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 49 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 50 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 51 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 52 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 53 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 54 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 55 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 56 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 57 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 58 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 59 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 60 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 61 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 62 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 63 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 64 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 65 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 66 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 67 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 68 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 69 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 70 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 71 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 72 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 73 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 74 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 75 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 76 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 77 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 78 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 79 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 80 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 81 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 82 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 83 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 84 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 85 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 86 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 87 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 88 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 89 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 90 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 91 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 92 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 93 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 94 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 95 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 96 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 97 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 98 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 99 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 100 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 101 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 102 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 103 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 104 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 105 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 106 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 107 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 108 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 109 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 110 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 111 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 112 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 113 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 114 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 115 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 116 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 117 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 118 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 119 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 120 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 121 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 122 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 123 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 124 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 125 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 126 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 127 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 128 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 129 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 130 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 131 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 132 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 133 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 134 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 135 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 136 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 137 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 138 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 139 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 140 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 141 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 142 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 143 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 144 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 145 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 146 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 147 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 148 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 149 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 150 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 151 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 152 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 153 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 154 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 155 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 156 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 157 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 158 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 159 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 160 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 161 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 162 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 163 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 164 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 165 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 166 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 167 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 168 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 169 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 170 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 171 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 172 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 173 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 174 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 175 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 176 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 177 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 178 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 179 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 180 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 181 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 182 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 183 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 184 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 185 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 186 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 187 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 188 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 189 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 190 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 191 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 192 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 193 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 194 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 195 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 196 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 197 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 198 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 199 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 200 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 201 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 202 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 203 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 204 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 205 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 206 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 207 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 208 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 209 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 210 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 211 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 212 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 213 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 214 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 215 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 216 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 217 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 218 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 219 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 220 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 221 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 222 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 223 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 224 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 225 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 226 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 227 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 228 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 229 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 230 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 231 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 232 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 233 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 234 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 235 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 236 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 237 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 238 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 239 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 240 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 241 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 242 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 243 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 244 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 245 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 246 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 247 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 248 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 249 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 250 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 251 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 252 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 253 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 254 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 255 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 256 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 257 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 258 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 259 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 260 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 261 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 262 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 263 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 264 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 265 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 266 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 267 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 268 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 269 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 270 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 271 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 272 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 273 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 274 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 275 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 276 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 277 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 278 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 279 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 280 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 281 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 282 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 283 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 284 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 285 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 286 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 287 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 288 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 289 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 290 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 291 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 292 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 293 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 294 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 295 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 296 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 297 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 298 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 299 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 300 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 301 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 302 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 303 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 304 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 305 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 306 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 307 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 308 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 309 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 310 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 311 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 312 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 313 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 314 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 315 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 316 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 317 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 318 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 319 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 320 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 321 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 322 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 323 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 324 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 325 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 326 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 327 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 328 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 329 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 330 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 331 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 332 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 333 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 334 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 335 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 336 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 337 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 338 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 339 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 340 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 341 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 342 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 343 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 344 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 345 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 346 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 347 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 348 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 349 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 350 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 351 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 352 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 353 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 354 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 355 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 356 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 357 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 358 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 359 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 360 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 361 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 362 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 363 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 364 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 365 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 366 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 367 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 368 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 369 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 370 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 371 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 372 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 373 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 374 Groundwater Transport Eqn.
Solving: Stress period: 2 Time step: 375 Groundwater Transport Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/10/01 16:04:02
Elapsed run time: 0.289 Seconds
Normal termination of simulation
[13]:
concobj = HeadFile(f"{mf.model_ws}/{mf.name}.con", text="conc")
simconc = concobj.get_ts((0, 0, 299))
[14]:
fig = plt.figure(figsize=(8, 5), dpi=150)
ax = fig.add_subplot(111)
ax.plot(simconc[:, 0], simconc[:, 1], label="BCT Result")
ax.set_xlabel("Time (days)")
ax.set_ylabel("Normalized concentration")
ax.set_title(
"MODFLOW-USG Transport Simulation Results for Dual Domain Transport in a One-Dimensional, Uniform Flow Field"
)
ax.legend()
[14]:
<matplotlib.legend.Legend at 0x7fcb2e4bc740>
