Henry Problem for Density-Dependent Flow and Transport
Panday, S., 2024; USG-Transport Version 2.4.0: Transport and Other Enhancements to MODFLOW-USG, GSI Environmental, July 2024 http://www.gsi-net.com/en/software/free-software/USG-Transport.html
The Henry Problem depicted by Guo and Langevin (2002) is replicated here to evaluate the ability of the BCT Process with density dependent flow capabilities coded into USG-Transport. A cross-sectional domain 2-m long, by 1-m high, and by 1-m wide is provided a constant flux of fresh ground water along the left boundary at a rate (Qin) of 5.702m3/d per meter with a concentration (Cin) equal to zero. A zero constant head boundary is applied to the right side of the cross-section to represent seawater hydrostatic conditions. The upper and lower model boundaries are no flow. The finite-difference model grid used to discretize the problem domain consists of 1 row with 21 columns and 10 layers. Each cell, with the exception of the cells in column 21, is 0.1 by 0.1 m in size. Cells in column 21 are 0.01-m horizontal by 0.1-m vertical. The narrow column of cells in column 21 was used to better locate the seawater hydrostatic boundary at a distance of 2 m. The WEL package was used to assign injection wells, with constant inflow rates of 0.5702 m3/d to each cell of column 1. Constant freshwater heads were assigned to the cells in column 21 using a head value of 1.0 m and a concentration of 35 kg/m3. The concentration for inflow from these constant head cells was specified at 35 kg/m3. An identical problem setup in SEAWAT was also simulated for comparison.
[1]:
import os
import matplotlib.pyplot as plt
import numpy as np
import flopy
from flopy.mfusg import (
MfUsg,
MfUsgBas,
MfUsgBct,
MfUsgDdf,
MfUsgDisU,
MfUsgLpf,
MfUsgOc,
MfUsgPcb,
MfUsgSms,
MfUsgWel,
)
from flopy.modflow import ModflowChd, ModflowDis
from flopy.plot import PlotCrossSection
from flopy.utils import HeadUFile
from flopy.utils.gridgen import Gridgen
[2]:
model_ws = "Ex5_Henry"
mf = MfUsg(
version="mfusg",
structured=False,
model_ws=model_ws,
modelname="Ex5_Henry",
exe_name="mfusg_gsi",
)
[3]:
ms = flopy.modflow.Modflow()
nrow = 1
ncol = 21
delc = 1.0
delr = [0.1] * ncol
delr[ncol - 1] = 0.01
nlay = 10
delv = 0.1
top = 1.0
botm = np.linspace(top - delv, 0.0, nlay)
dis = flopy.modflow.ModflowDis(
ms, nlay, nrow, ncol, delr=delr, delc=delc, laycbd=0, top=top, botm=botm
)
[4]:
gridgen_ws = os.path.join(model_ws, "gridgen")
if not os.path.exists(gridgen_ws):
os.mkdir(gridgen_ws)
g = Gridgen(ms.modelgrid, model_ws=gridgen_ws)
g.build()
gridprops = g.get_gridprops_disu5()
[5]:
disu = MfUsgDisU(mf, **gridprops, nper=1, perlen=2.0, nstp=40, tsmult=1.1, steady=False)
# gridprops_ug = g.get_gridprops_unstructuredgrid()
# ugrid = flopy.discretization.UnstructuredGrid(**gridprops_ug)
# mf.modelgrid = ugrid
[6]:
bas = MfUsgBas(mf)
[7]:
ipakcb = 53
hk = 864.0
vka = 864.0
ss = 0.0
lpf = MfUsgLpf(mf, ipakcb=ipakcb, hk=hk, vka=vka, ss=ss)
[8]:
sms = MfUsgSms(
mf,
hclose=1.0e-4,
hiclose=1.0e-6,
mxiter=250,
iter1=600,
iprsms=1,
nonlinmeth=-1,
linmeth=1,
theta=0.7,
akappa=0.07,
gamma=0.1,
amomentum=0.0,
numtrack=200,
btol=1.1,
breduc=0.2,
reslim=1.0,
iacl=0,
norder=0,
level=1,
north=14,
iredsys=0,
rrctol=0.0,
idroptol=0,
epsrn=1.0e-3,
)
[9]:
dtype = np.dtype([("node", int), ("flux", np.float32), ("c01", np.float32)])
welflux = 0.5702
welconc = 0.0
lrcsc = []
for ilay in range(nlay):
innode = mf.modelgrid.get_layer_node_range(ilay)[0]
lrcsc.append([innode, welflux, welconc])
wel = MfUsgWel(
mf, ipakcb=ipakcb, options=[], dtype=dtype, stress_period_data={0: lrcsc}
)
[10]:
dtype = np.dtype(
[("node", int), ("shead", np.float32), ("ehead", np.float32), ("c01", np.float32)]
)
chdhead = 1.0
chdconc = 35.0
lrcsc = []
for ilay in range(nlay):
outnode = mf.modelgrid.get_layer_node_range(ilay)[1] - 1
lrcsc.append([outnode, chdhead, chdhead, chdconc])
chd = ModflowChd(mf, ipakcb=ipakcb, options=[], dtype=dtype, stress_period_data=lrcsc)
[11]:
prsity = 0.35
dl = 0.0
dt = 0.0
conc = 35.0
anglex = 0.0
bct = MfUsgBct(
mf,
ipakcb=55,
itvd=3,
cinact=-999.9,
anglex=anglex,
prsity=prsity,
dl=dl,
dt=dt,
conc=conc,
)
[12]:
ddf = MfUsgDdf(mf)
[13]:
outconc = 35.0
lrcsc = []
for ilay in range(nlay):
outnode = mf.modelgrid.get_layer_node_range(ilay)[1] - 1
lrcsc.append([outnode, 1, outconc])
pcb = MfUsgPcb(mf, stress_period_data=lrcsc)
[14]:
oc = MfUsgOc(
mf,
save_conc=1,
save_every=1,
save_types=["save head", "save budget"],
unitnumber=[14, 30, 31, 0, 0, 132],
)
[15]:
mf.write_input()
success, buff = mf.run_model()
True
FloPy is using the following executable to run the model: ../../../../../../../.local/bin/modflow/mfusg_gsi
USG-TRANSPORT
MODFLOW-USG GROUNDWATER FLOW AND TRANSPORT MODEL
Version USG-TRANSPORT VERSION 2.5.0
Using NAME file: Ex5_Henry.nam
Run start date and time (yyyy/mm/dd hh:mm:ss): 2025/10/01 16:04:05
Solving: Stress period: 1 Time step: 1 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 1 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 2 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 2 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 3 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 3 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 4 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 4 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 5 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 5 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 6 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 6 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 7 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 7 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 8 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 8 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 9 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 9 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 10 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 10 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 11 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 11 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 12 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 12 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 13 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 13 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 14 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 14 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 15 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 15 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 16 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 16 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 17 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 17 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 18 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 18 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 19 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 19 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 20 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 20 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 21 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 21 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 22 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 22 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 23 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 23 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 24 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 24 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 25 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 25 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 26 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 26 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 27 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 27 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 28 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 28 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 29 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 29 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 30 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 30 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 31 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 31 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 32 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 32 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 33 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 33 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 34 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 34 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 35 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 35 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 36 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 36 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 37 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 37 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 38 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 38 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 39 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 39 Groundwater Transport Eqn.
Solving: Stress period: 1 Time step: 40 Groundwater Flow Eqn.
Solving: Stress period: 1 Time step: 40 Groundwater Transport Eqn.
Run end date and time (yyyy/mm/dd hh:mm:ss): 2025/10/01 16:04:05
Elapsed run time: 0.032 Seconds
Normal termination of simulation
[16]:
concobj = HeadUFile(f"{mf.model_ws}/{mf.name}.con", text="conc")
simconc = concobj.get_data()

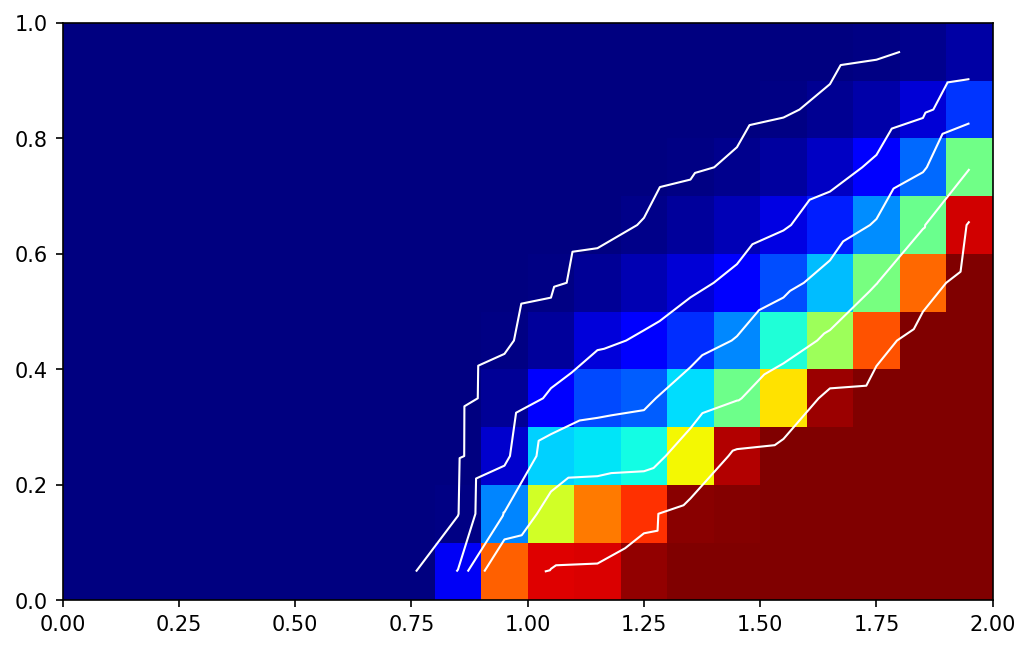

[17]:
levels = [0.35, 3.5, 8.75, 17.5, 31.5]
fig = plt.figure(figsize=(8, 5), dpi=150)
ax = fig.add_subplot(111)
pxs = PlotCrossSection(ms, ax=ax, line={"row": 0})
pxs.plot_array(simconc, cmap="jet", vmin=0, vmax=35)
pxs.contour_array(simconc, levels=levels, colors="w", linewidths=1.0, linestyles="-")
[17]:
<matplotlib.tri._tricontour.TriContourSet at 0x7f7b35284320>
